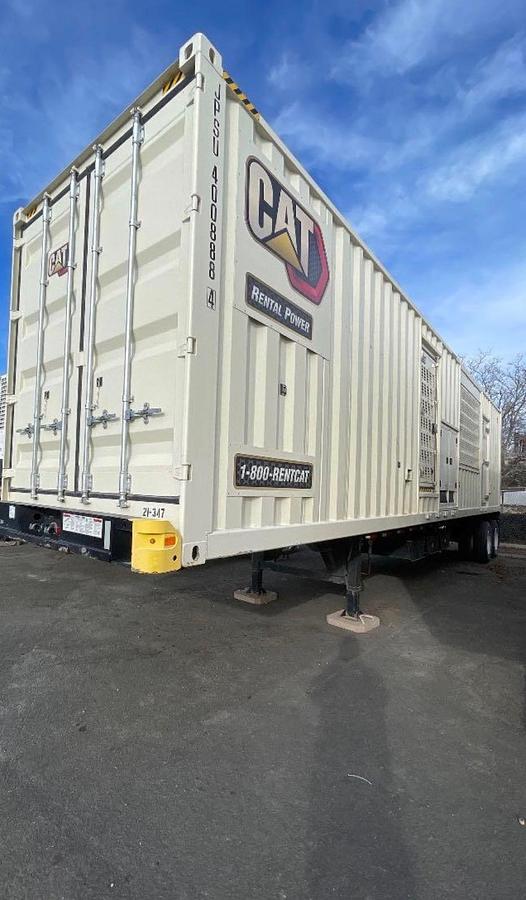

2021 Caterpillar XQ1140 Diesel Generator

Benefits & Features

Fuel/Emissions Strategy

• Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all

60 Hz ratings Design Criteria

• Meets ISO 8528 transient response

Single-source Supplier

• Package is factory designed and production tested

• Manufactured in ISO 9001:2000 facility

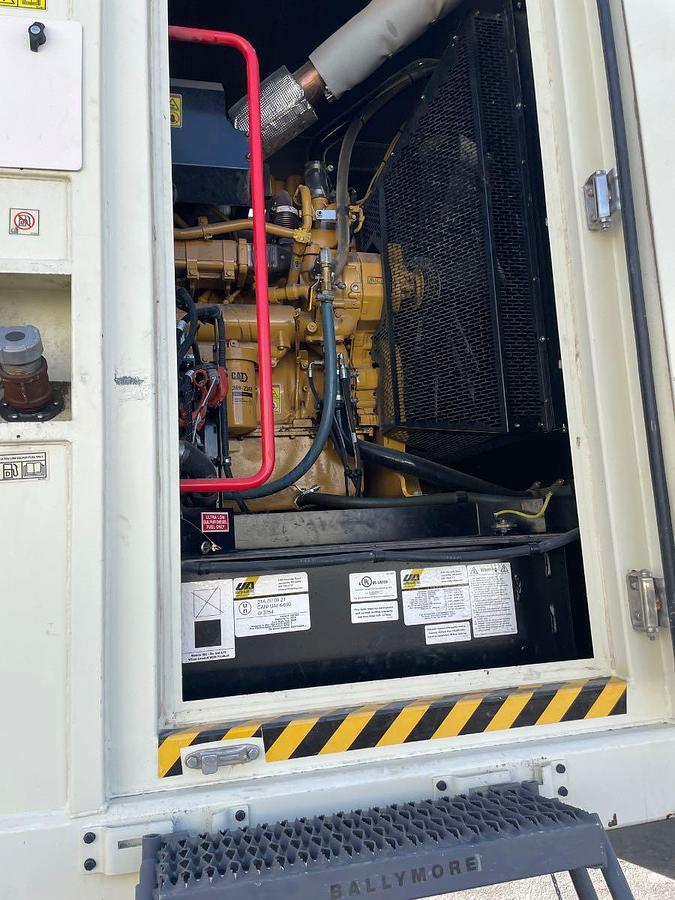

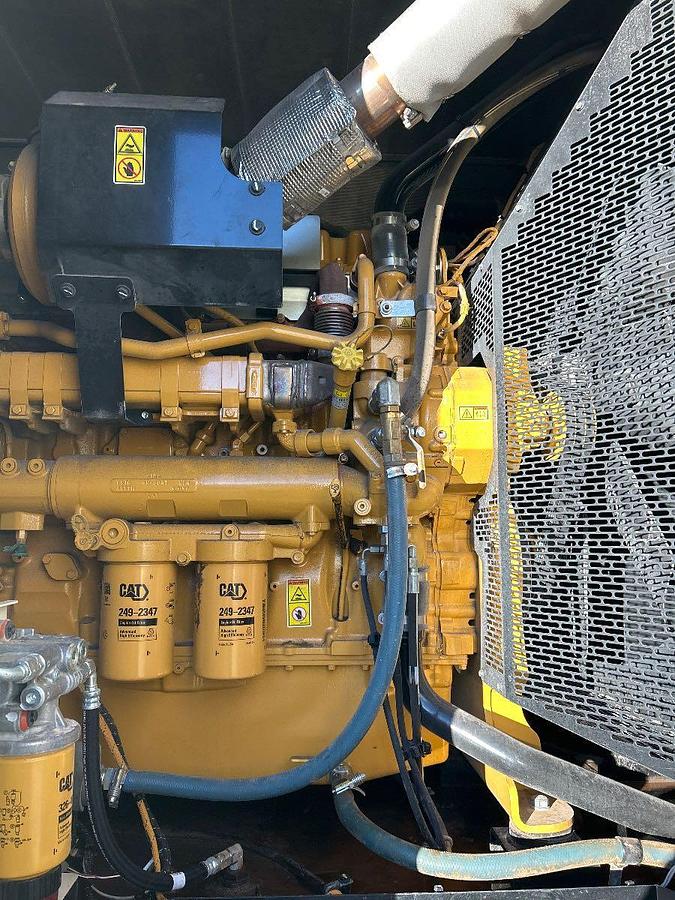

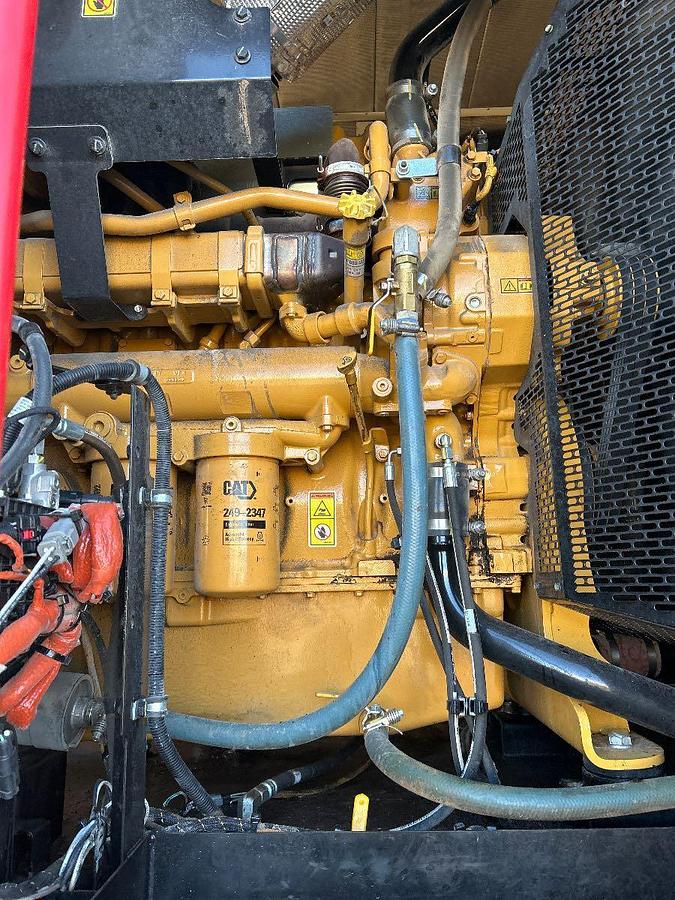

Cat® C18 Diesel Engines

• Uses ACERT™ Technology

• Reliable, rugged, durable design

• Four-stroke diesel engine combines consistent performance and excellent fuel economy with minimum weight

• Electronic ADEM™ A4 engine control

Cat Clean Emissions Modules (CEM)

• Each aftertreatment module consists of Caterpillar Regeneration System (CRS), Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), and Selective Catalytic Reduction (SCR)

Diesel Exhaust Fluid (DEF) Tanks

• 25-gallon DEF tank (each) with on-tank fill and integrated pump, level sensor and heating elements

• Tanks are connected to allow engine access to all DEF

• Electrically heated DEF lines from tank to CEM

Warranty

24 Month / 2000 Hour Caterpillar Advantage Extended Service Coverage - Platinum Plus

Delayed Start date of up to 12 Months from Date of Invoice

Cat Generator

• Matched to the performance and output characteristics of Cat engines

• Single point access to accessory connections

• UL 1446 Recognized Class H insulation

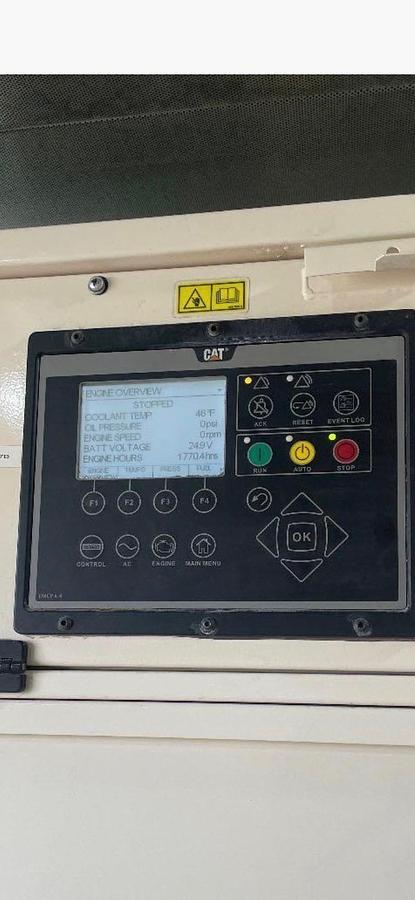

Cat EMCP 4.4 Control Panel

• Fully featured power metering, protective relaying engine/generator control and monitoring

• Simple user-friendly interface and navigation Automatic set-point adjustment integrated with voltage and frequency selection

Cat Integrated Voltage Regulator (Cat IVR)

• Three-phase sensing

• Adjustable volts-per-hertz regulation

• Provides precise control, excellent block loading, and constant voltage in the normal operating range

Sound Attenuated Container

• Provides ease of transportation and protection

• Sound level is 76 dB(A) at 7 meters per SAE J1074 measured at 75% prime load

Reduced Environmental Impact

• 110% spill containment of onboard engine fluids

• Variable speed cooling fan for reduced fuel consumption and reduced sound at partial loads

Factory-installed Standard Equipment

Engine

• Two (2) Cat® C18 heavy-duty diesel engines meeting Tier 4 Final emission standards Generator (per engine)

• Three-phase, random wound, coastal insulation protection, 0.6667 pitch, permanent magnet excited,

Class H insulation

• Sized for 105°C temperature rise at 40°C ambient

• Anti-condensation heaters (240V, 1.2 kW)

• 12-lead design, with voltage changeover link board (480V)

• Cat IVR with VAR/PF control

Air Inlet (per engine)

• Heavy-duty air cleaner with precleaner, two-stage cyclonic paper with dust cup and service indicator

• Turbocharger and air-to-air aftercooler

Cat CEM (per engine)

• CEM comes with integrated CRS, DOC, DPF, and SCR and is located in separate compartment DEF System (per engine)

• 25-gal plastic DEF tank provides capacity to meet or exceed fuel tank runtime @ 75% prime

• DEF tank is equipped with integrated pump, level sensor to display the DEF level in EMCP panel, and electrically heated lines from DEF tank to CEM

• Equipped with low and critically low-level alarms with a critically low shutdown

Charging System (per engine)

• UL Listed 240V, 20 amp battery charger, shockmounted and enclosed in dust-proof housing

• Charging alternator; 24V-80A, heavy duty with integral regulator and belt guards

• Solar maintainer for batteries

Fuel System (per engine)

• 630-gal (2385 L) double-wall fuel tank, UL 142 and ULC 601 Listed and complies with Transport Canada requirements, 24-hour runtime @ 75% prime, internal and external fuel fill

• Fuel tanks connected by fuel transfer system with filter to allow both engines access to all fuel onboard

• Fuel cooler

• Switch operated, electric priming pump

• Auxiliary connections for customer-supplied fuel transfer system with 2-way fuel transfer valve

• Primary fuel filters (2) with integral water separator and differential pressure gauge

• Engine-mounted secondary fuel filters

Lube System (per engine)

• Pump, integral oil cooler, lube oil, filter, filler and dipstick, and oil sampling valve

• Open crankcase breather with cartridge filter

• Oil drain line with internal brass ball valve routed to connection point accessible from exterior

• 500-hour oil change intervals

Mounting System (per engine)

• Each generator set soft mounted to the heavy duty, fabricated steel base frame

• Steel base frame with tie-down eyes contains integral fuel tank Starting System

• Single electric starting motor, 24V per engine

• Each engine has dual 12V (1400 CCA) maintenancefree batteries with disconnect switch, battery rack, and cables

• UL Listed, 240V single-phase jacket water heater with thermostat and shut-off valves

Cooling

• Provides 47°C ambient capability at Prime rating and 500m

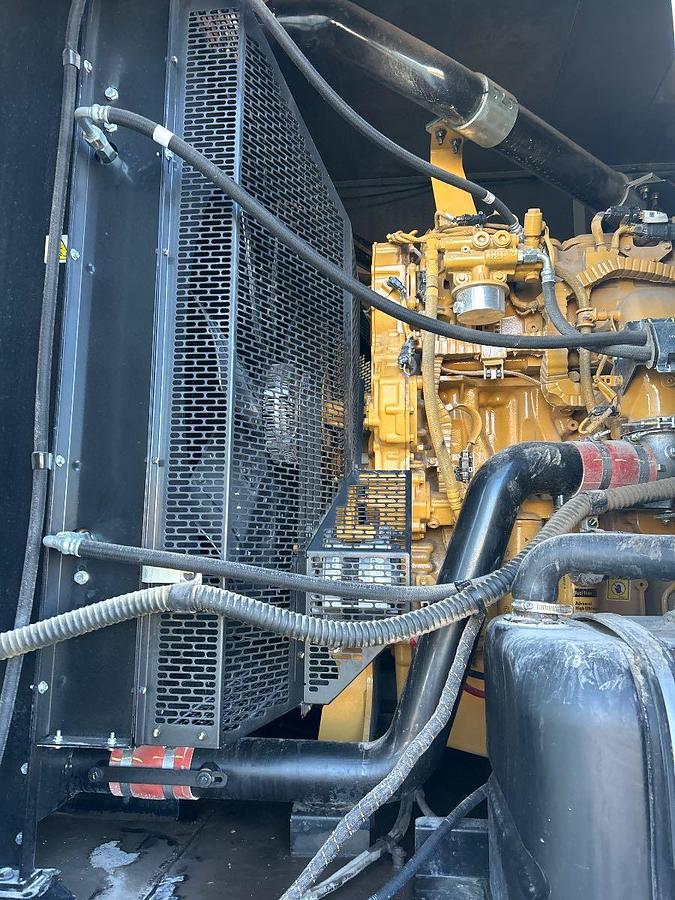

• Vertically mounted radiator with vertical air discharge from the container

• Coolant drain line with internal valve and lowlevel shutdown switch

• Coolant sight gauge and low-level shutdown switch

• 50/50 Extended Life Coolant

Containerized Module

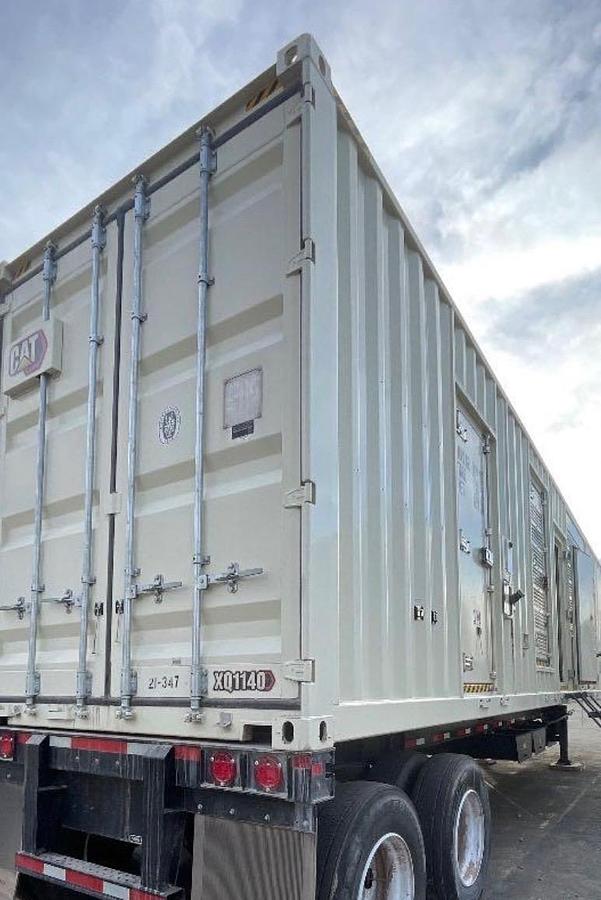

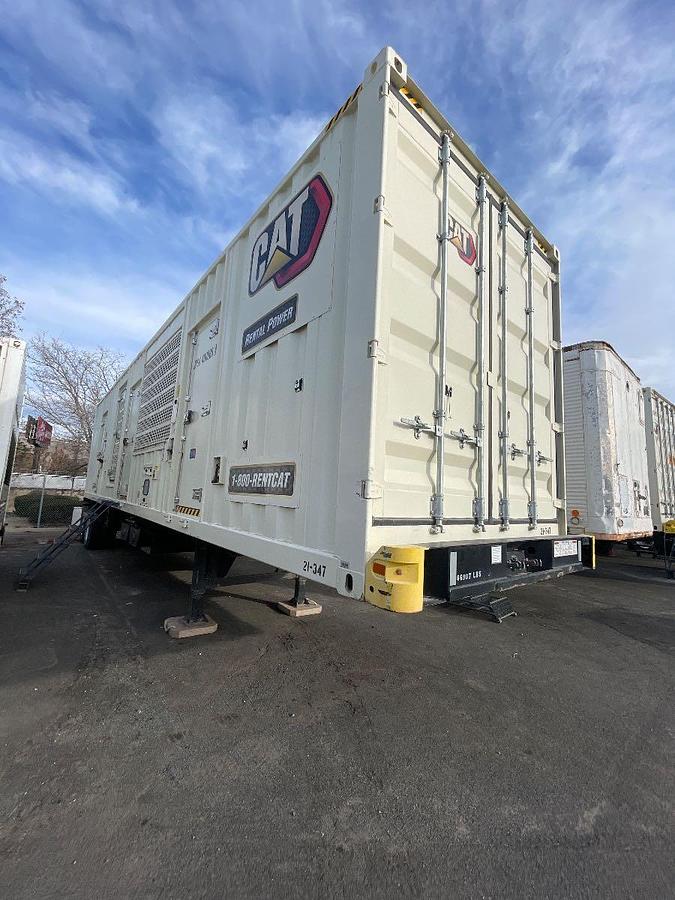

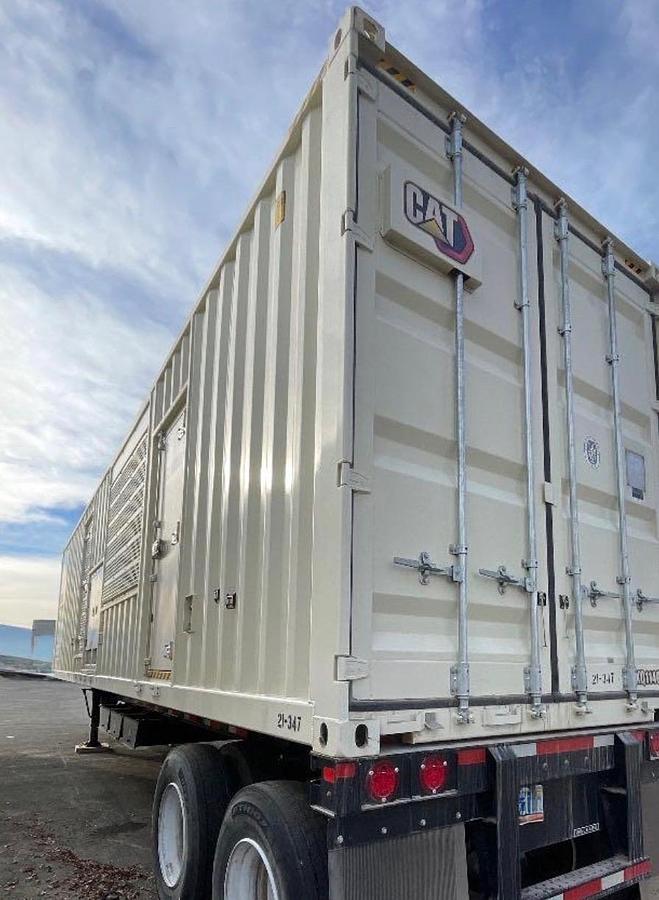

• 40’ ISO high cube container

• Sound attenuated air intake louvers and five lockable personnel doors with panic release

• Interior walls and ceilings insulated with 100 mm of acoustic paneling

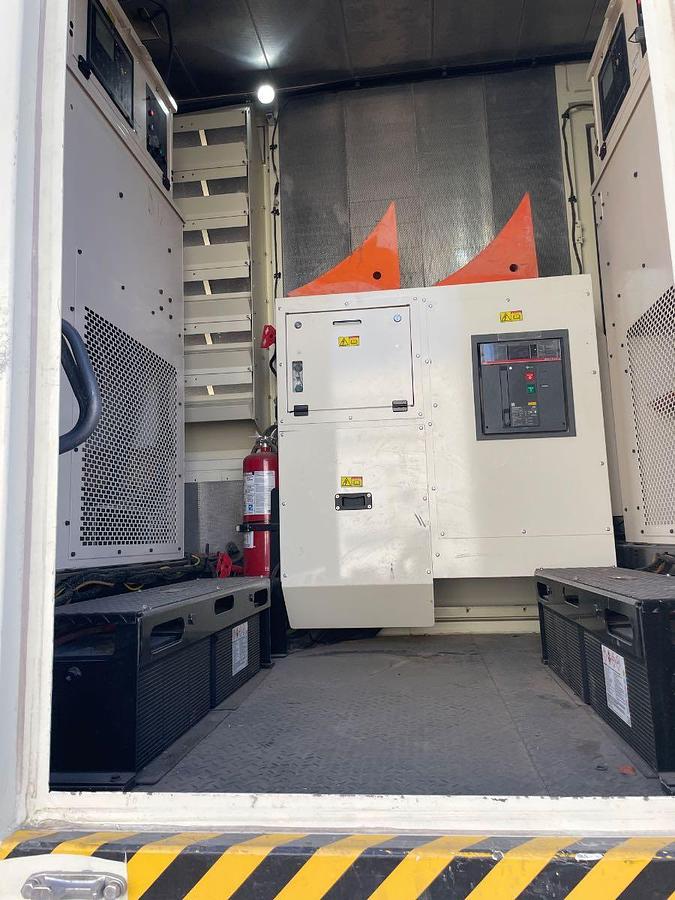

• Side bus bar access door, external access load connection bus bars

• Shore power connection via distribution block connections for jacket water heater, battery charger, space heaters, generator condensate heaters, and internal duplex service receptacle

• Customer convenience panel with multiple receptacles

• External Emergency Stop pushbuttons (2)

• Duplex service receptacle (1), 120V, from generator power

• Six internal LED DC lights with one timer

• Corrosion resistant hardware and hinges

• Cat® Rental Power decals

• Painted standard Cat power module white

• External drain access to coolant, oil, and DEF fluids

• Auxiliary connections for customer-supplied fuel transfer system

Shore Power

• 240V shore power connection for jacket water heater, generator space heater, and battery charger

• Includes controls to de-energize jacket water heaters and generator space heater when the engine is running

Generator Set Controls and Protection

• EMCP 4.4 generator set mounted controller per genset

• Automatic start/stop with cooldown timer

• Generator features: 32, 32RV, 46, 50/51, 27/59, 81 O/U

• Utility Multi-function Relay (UMR) protective features: 24, 25, 27, 32, 40, 43, 46, 47, 50, 51, 51N, 59, 67, 79, 81O/U

• Multiple Genset Control Data Link (MGDL) for convenient paralleling connection

• 2000A electrically operated generator circuit breaker per genset

• 3600A feeder (tie) breaker

• Multi-mode operation (island, multi-island and utility parallel)

• Manual and automatic paralleling capability

• Metering display: voltage, current, frequency, power factor, kW, WHM, kVAR, and synchroscope

Trailer

• Two-axle, air-ride chassis with anti-lock brake system
