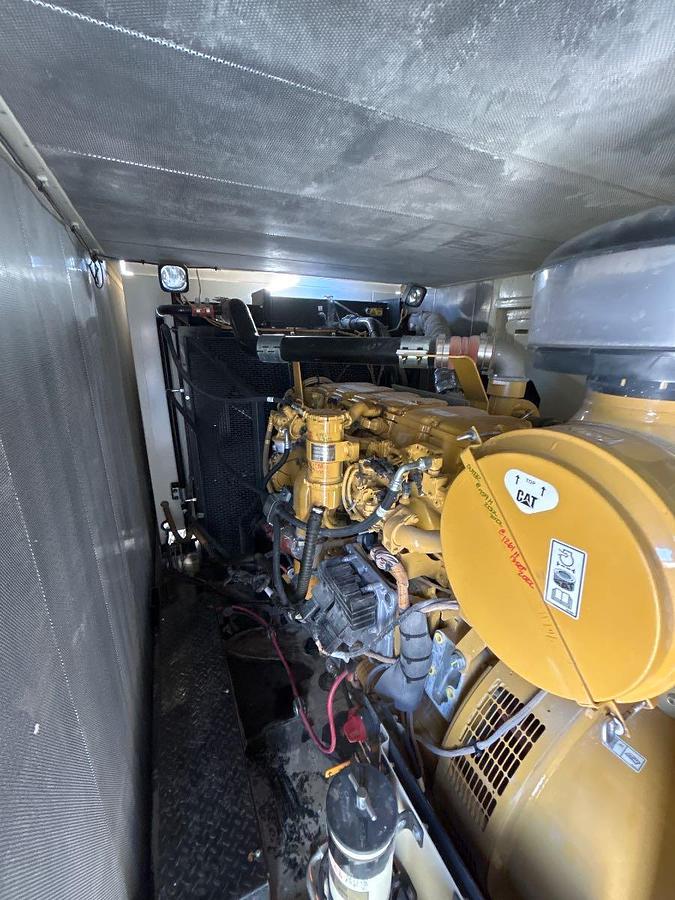

2021 Caterpillar XQ570 Diesel Generator
Specifications
| Manufacturer | Caterpillar |
| Model | XQ570 |
| Year | 2021 |
| Condition | Used |
| Serial Number | ME500466 |
| Stock Number | AES1434 |
| KW | 455 |
| Hours | 4,186 |
| Fuel Type | Diesel |
| Engine Make | Caterpillar |
| Engine Model | C18 |
| Engine Serial | CM800780 |
| Engine Arrangement | 519-4410 |
| Emissions Rating | EPA Tier 4 Final |
| RPM | 1800 |
| Generator End Make | Caterpillar |
| Generator End Model | SR4 |
| Generator End Serial | G6B26916 |
| Generator End Frame Size | LC6134G |
| Voltage | Dual Voltage (Link Board) |
| Amperage | 752A @ 480v / 1,735A @ 208v |
| Duty | Prime |
Shipping details
| Width | 96 in |
| Height | 150 in |
| Length | 282 in |
| Weight | 39350 lbs |
Description

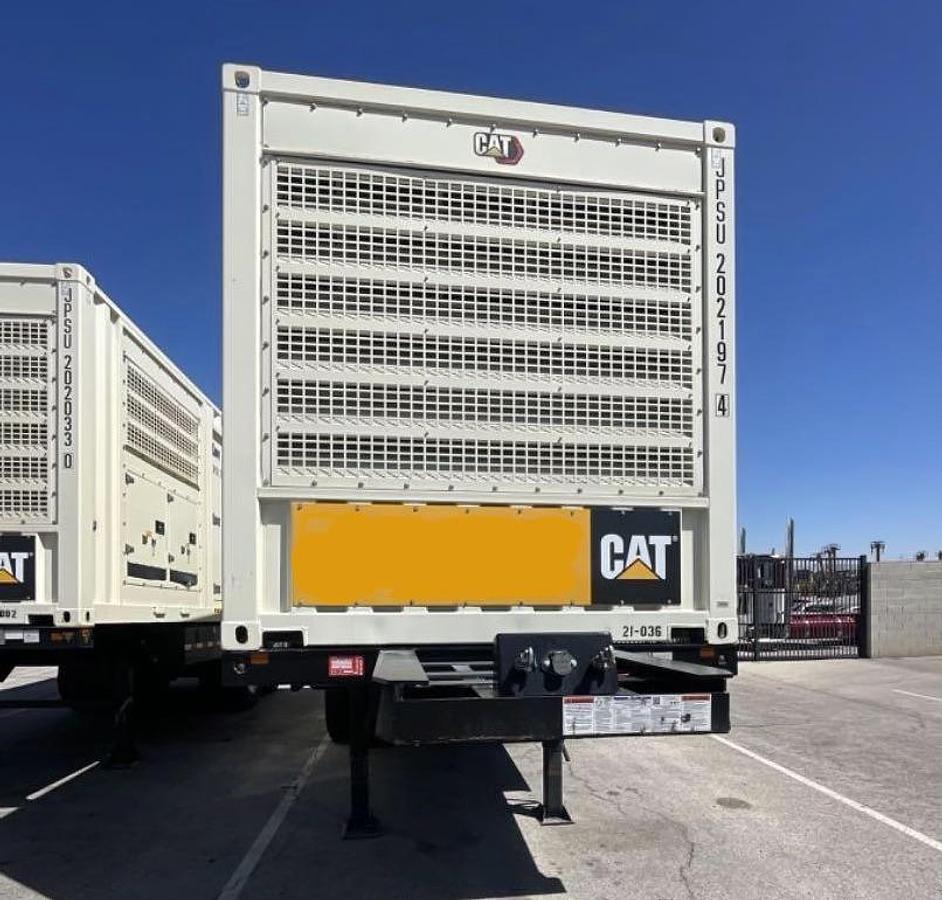

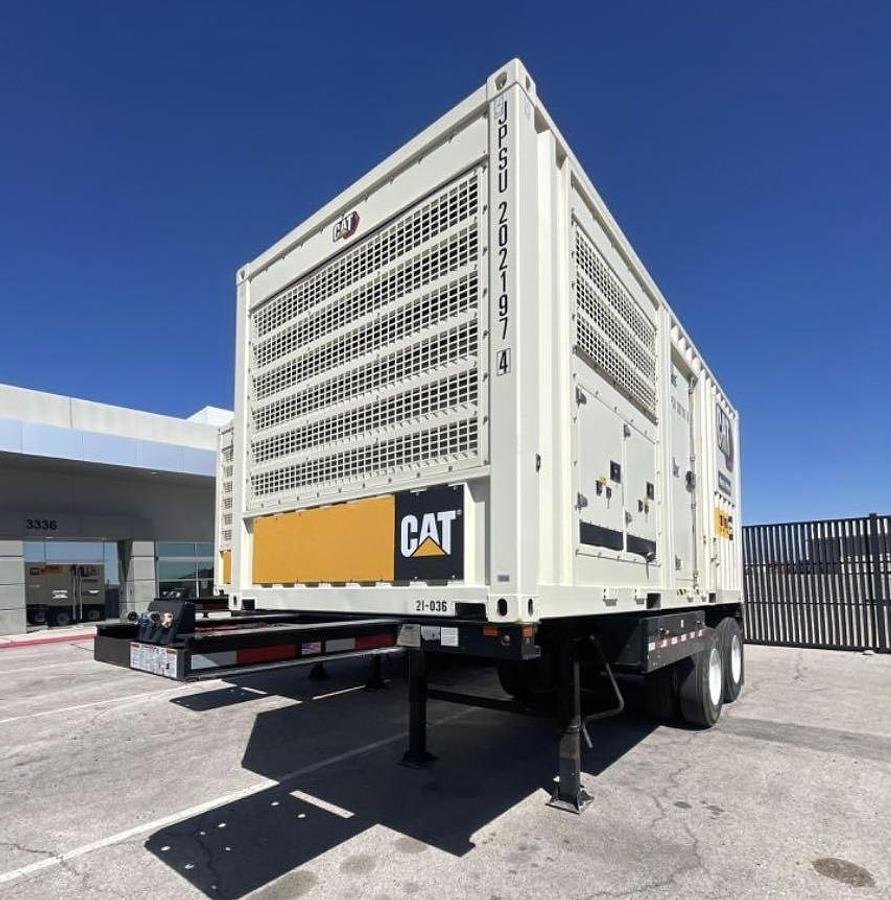

Sound Attenuated 20' Containerized Power Module - 72 dB(A) or less at 7 meters

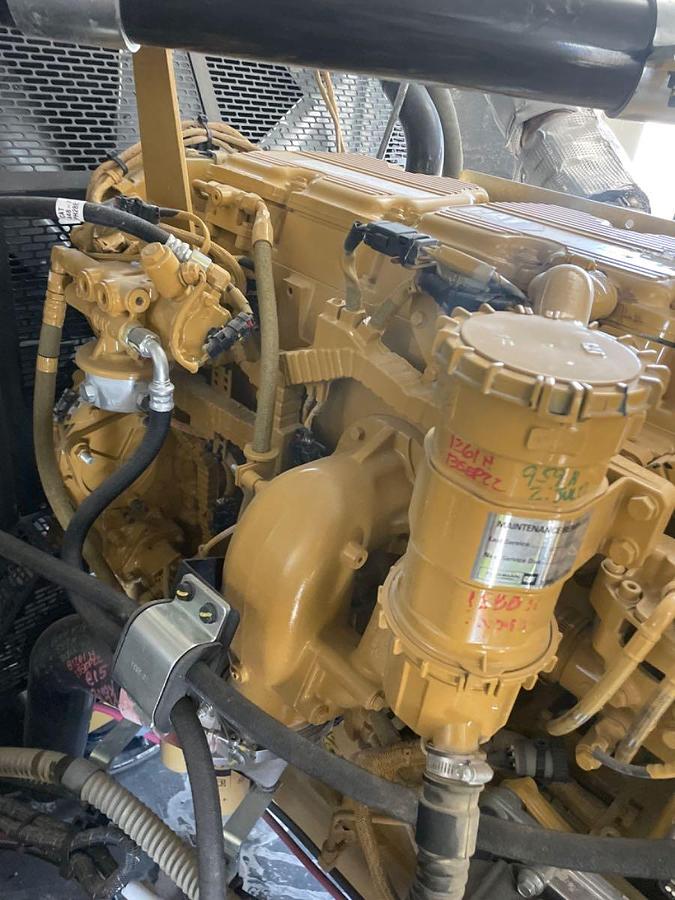

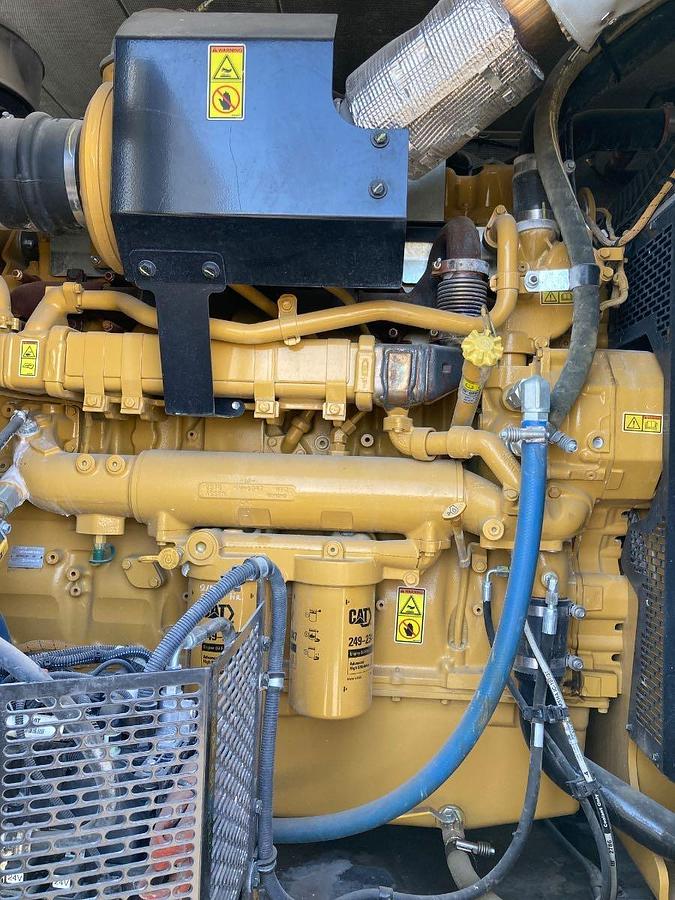

Powered by Tier 4 Final Caterpillar C18 Diesel Generator Set

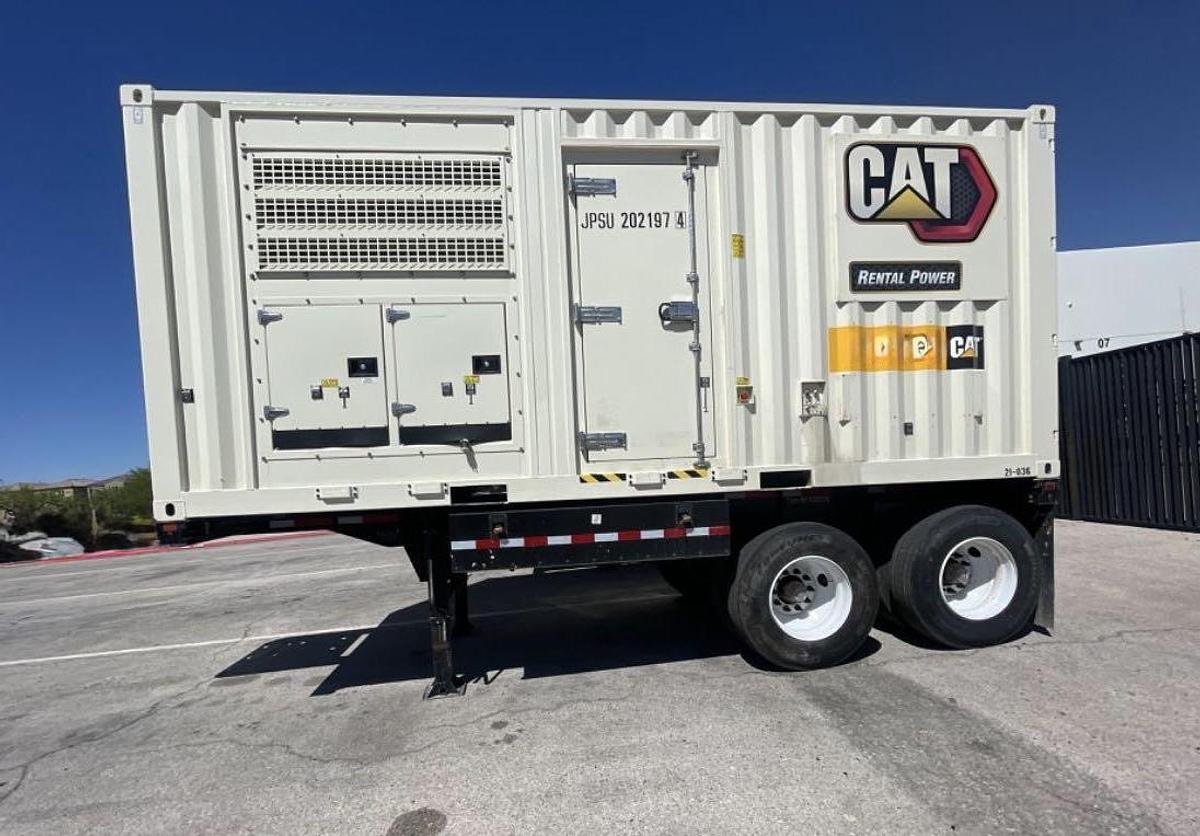

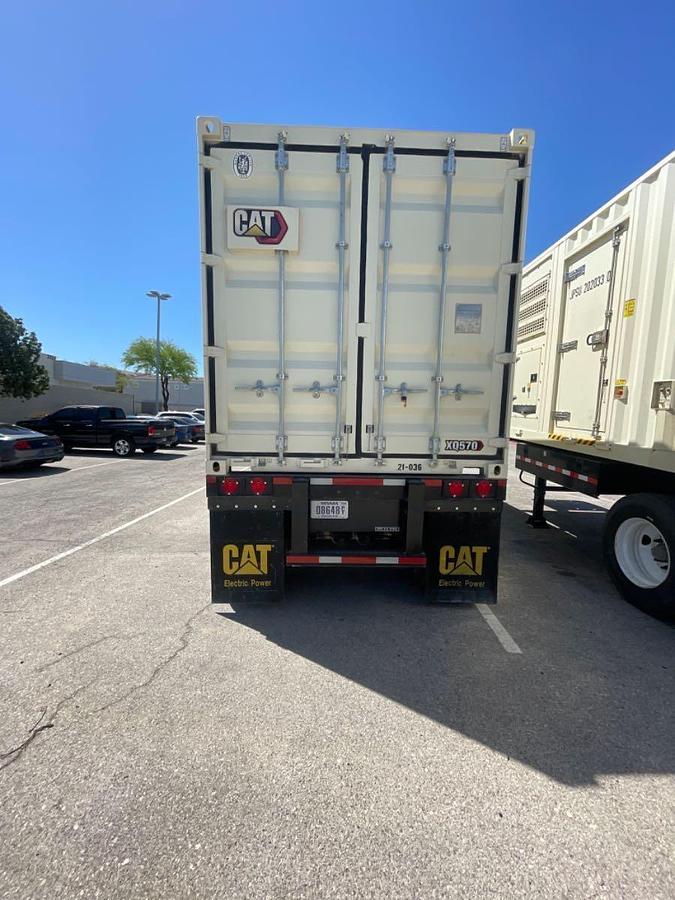

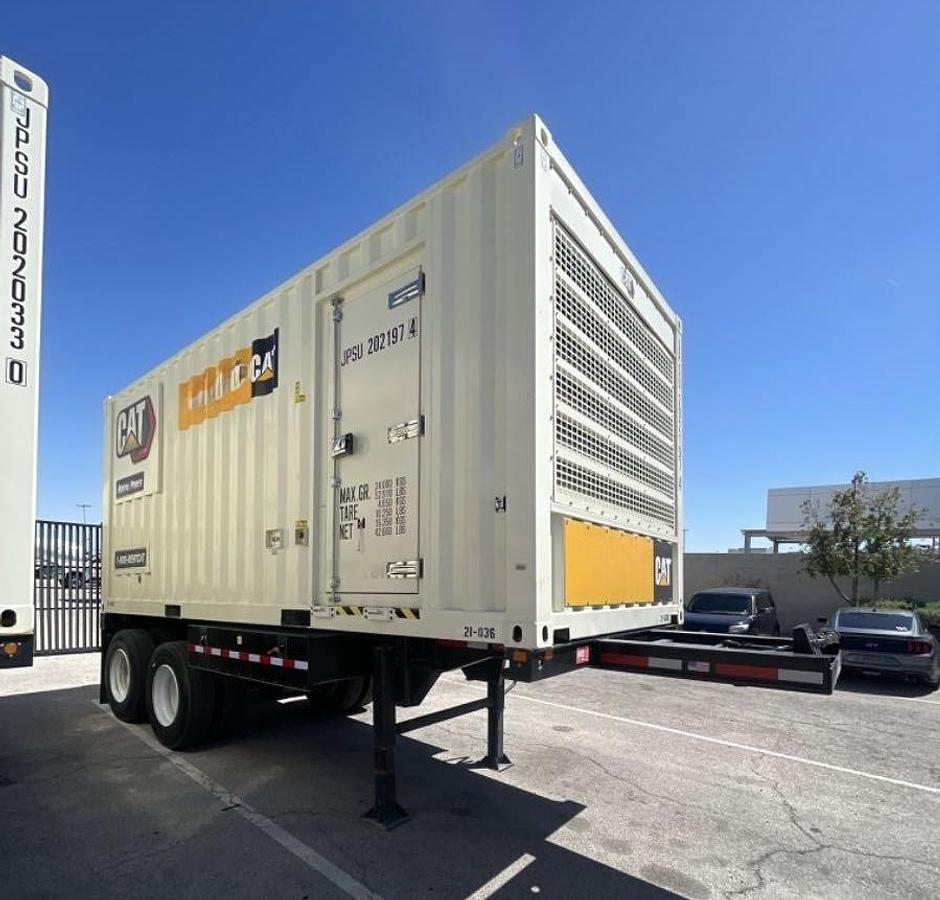

Dual Axle Trailer Mounted with Title
CSA Approved
Caterpillar Clean Emissions Module (CEM)
25 Gallon Diesel Exhaust Fluid (DEF) Tank

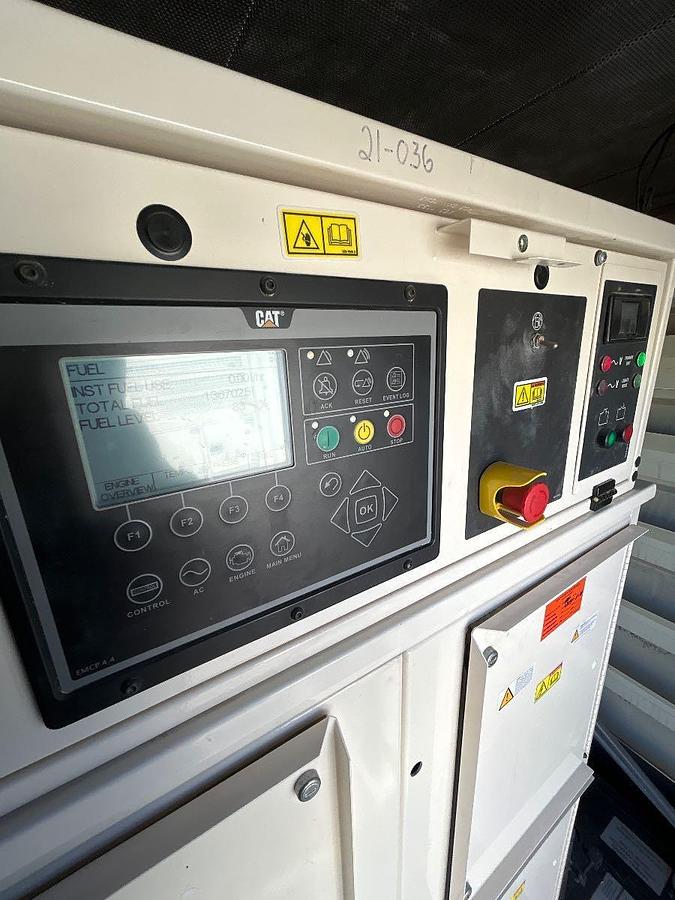

EMCP 4.4 Digital Control Panel
Cat Integrated Voltage Regulator (IVR)
110% Spill Containment
Heavy Duty Air Cleaner w/ Precleaner
700 Gallon Double Wall UL142 On Board Fuel Tank
12 Lead Generator End with Voltage Changeover Board for 120/208v or 277/480v Operation
24V Electric Starting System
Battery Charger
Battery Charging Alternator
Batteries
Battery Disconnect Switch
Auto Start / Stop
Safety Shutdowns
Jacket Water Heater
2000A Main Line Circuit Breaker
This 2021 Caterpillar XQ570 Diesel Generator is a robust, mobile power solution designed for demanding applications. It is built within a sound-attenuated 20-foot containerized power module, ensuring a noise level of 72 dB(A) or less from a distance of 7 meters. The generator is powered by a reliable Tier 4 Final Caterpillar C18 engine, offering a prime power output of 455 kW. It features a dual axle trailer mount, allowing easy transportation and comes with a title for legitimated ownership. This unit is equipped with a 24V electric starting system, a heavy-duty air cleaner with pre-cleaner, and a 700-gallon double-wall UL142 onboard fuel tank, providing extended operation with spill containment capability. The dual-voltage generator end allows for either 120/208V or 277/480V operation, complemented by a Cat Integrated Voltage Regulator for stable power delivery. An EMCP 4.4 digital control panel offers comprehensive monitoring and management, along with auto start/stop functionality and safety shutdowns. Additional features include a 2000A main line circuit breaker, battery charger, dual starting method provisions, a battery disconnect switch, and a jacket water heater. The generator's emissions are CSA-approved and compliant with EPA Tier 4 Final regulations, utilizing a Caterpillar Clean Emissions Module and a 25-gallon diesel exhaust fluid tank. With 4,186 operational hours and a commitment to clean energy, this generator is ideal for both temporary and prime power applications.
