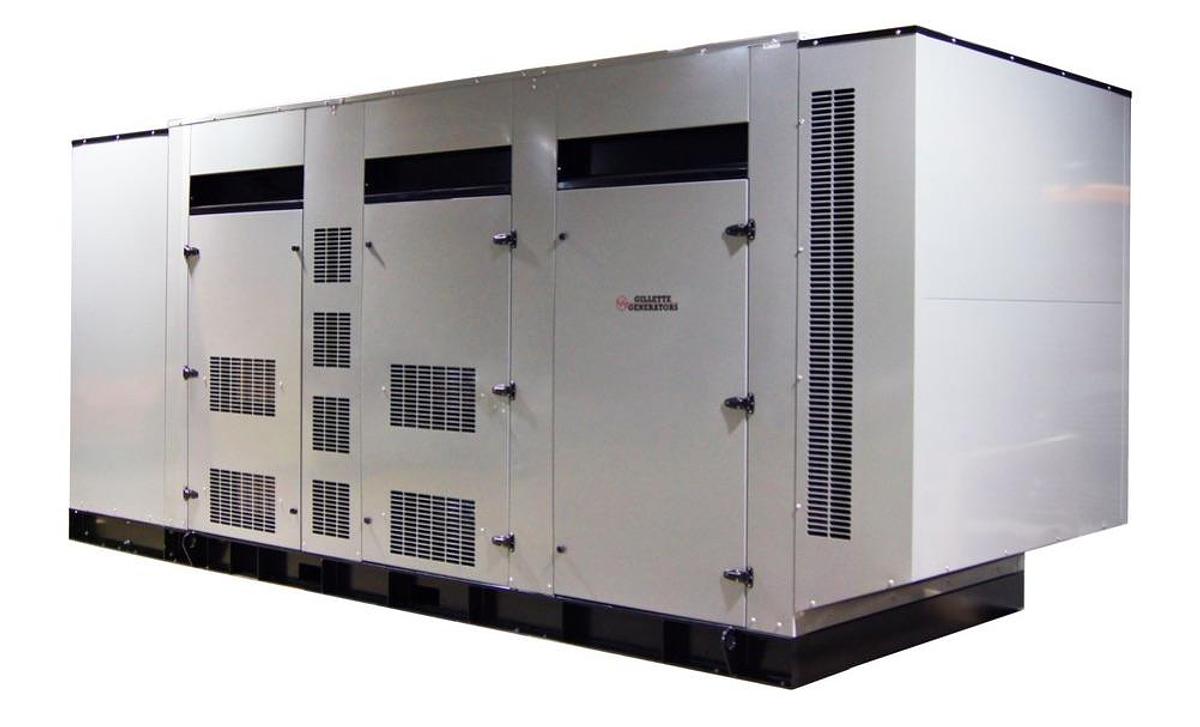

Gillette SP-5000-3-4 Natural Gas Generator

Powered by a PSI 21.9L Turbocharged Engine Rated 764 HP @ 1800 RPM

UL2200 Certified

12 Lead Reconnectable Stamford Generator End

Class H Insulation

120°C Temp Rise

Level 2 Sound Attenuated Enclosure

Internal Critical Grade Exhaust Silencer

Flexible Radiator and Oil Drains

Radiator Filled with Mixture of Green Glycol and De-Ionized Water

Engine Crankcase Filled with SAE 10W30 Oil

Battery Rack and Cables

24V Electric Starting System

800 AMP LSI 100% Rated- Eaton Breaker

Deep Sea 7420 MKII Digital Control Panel

Battery Charging Alternator

Automatic Voltage Regulator

Fuel Pressure 1.74–2.74 kPa and Two 2-inch Inlet Lines

Natural Gas or Propane Capable (rating changes for Propane)

EPA Certified for North American Emergency Standby Use

(2) 12 VDC Starting Batteries (24VDC STARTING SYSTEM) - SKU (2) S-B1000

External PMG Excitation - SKU S-8A

(2) 2'' Flexible Dry Fuel Line, LPG or Natural Gas Line with 2'' NPT Fitting, 21'' Long - SKU S-10C

4000 Watt Engine Coolant Heater - SKU S-13G

10 AMP Battery Charger - SKU S-16A

5 Year Warranty Extension

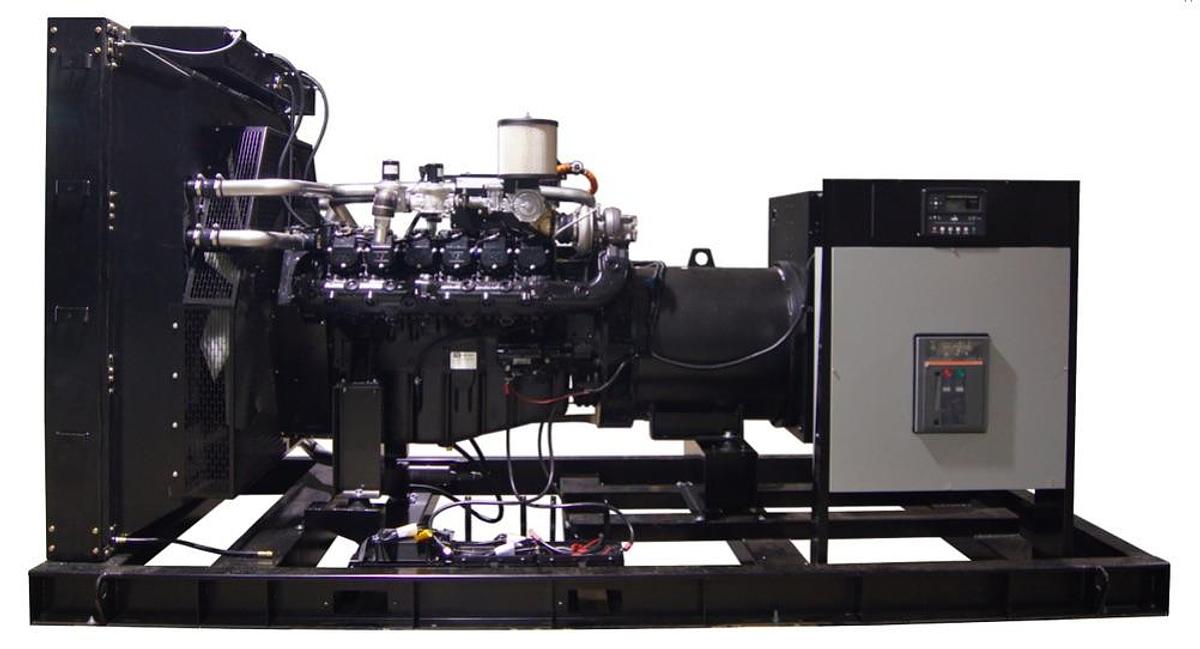

The Gillette SP-5000-3-4 is a powerful and reliable natural gas generator designed for stationary use, offering a standby power capacity of 500 kW. It is driven by a PSI 21.9L Turbocharged engine rated at 764 horsepower, achieving an operational speed of 1800 RPM. The generator is equipped with a UL2200 certified design, featuring a 12 lead reconnectable Stamford generator end with Class H insulation, ensuring durability and efficiency under demanding conditions. Key features include a Level 2 sound attenuated enclosure for noise reduction, an internal critical grade exhaust silencer, and a flexible radiator and oil drains for maintenance convenience. The unit boasts an automatic voltage regulator, a Deep Sea 7420 MKII digital control panel, and an Eaton 800 AMP LSI 100% rated breaker, enhancing its operational stability and control. Designed with a 24V electric starting system, it includes two 12V starting batteries and a battery charging alternator to maintain reliability. Capable of running on natural gas or propane, the generator comes EPA certified for North American emergency standby use. It also features a radiator filled with a glycol and de-ionized water mixture and an engine crankcase pre-filled with SAE 10W30 oil, easing setup. Supported by a comprehensive 5-year warranty extension, the Gillette SP-5000-3-4 assures robust performance and peace of mind for critical power needs.
