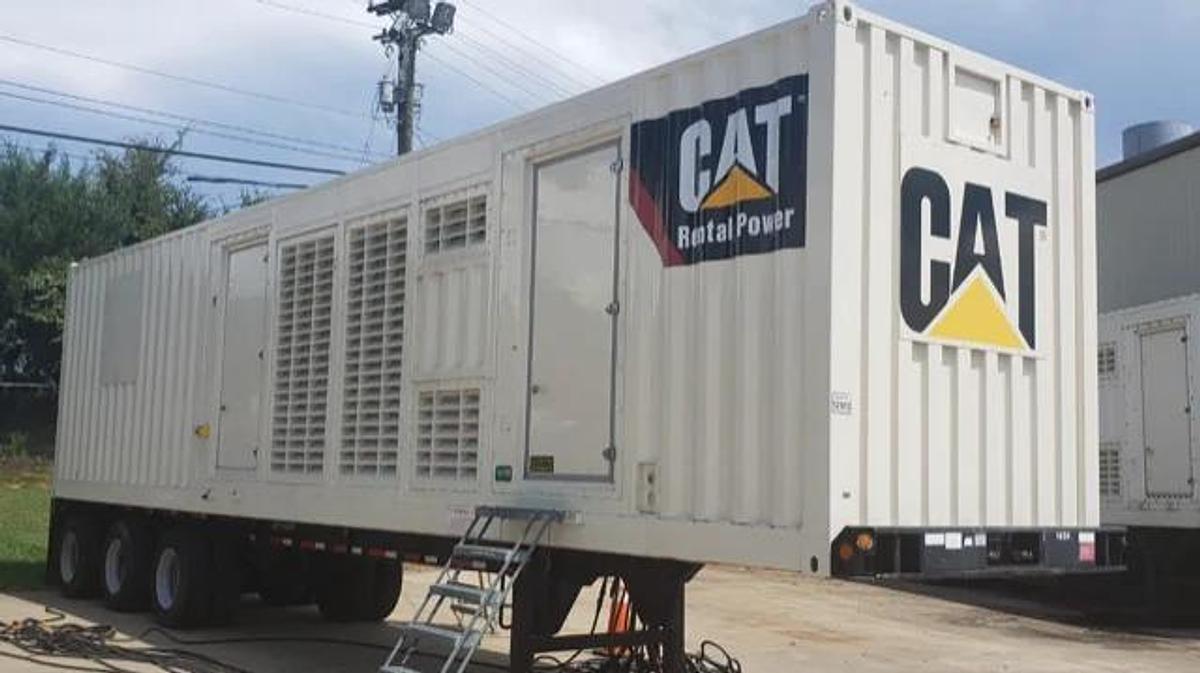

1997 Caterpillar 3516B Diesel Generator
Specifications
| Manufacturer | Caterpillar |
| Model | 3516B |
| Year | 1997 |
| Condition | Refurbished |
| Serial Number | 7RN00440 |
| Stock Number | AES1399 |
| KW | 1825 |
| Hours | 0 Since Refurb |
| Fuel Type | Diesel |
| Engine Make | Caterpillar |
| Engine Model | 3516B DITA |
| Engine Serial | 7RN00440 |
| Engine Arrangement | 112-2663 |
| Emissions Rating | Non Certified |
| RPM | 1800 |
| Generator End Make | Caterpillar |
| Generator End Model | SR4-B |
| Generator End Serial | 4FN00769 |
| Generator End Arrangement | 4P-4578 |
| Generator End Frame Size | 825 |
| Voltage | 277 / 480V |
| Amperage | 3007A |
| Duty | Prime |
| Application | Mobile Power, Rental Fleet, Disaster Response, Temporary Backup Power, Aggregate |
| Trailer Vin | 3H3C403S0AT369057 |
Shipping details
| Width | 96 in |
| Height | 156 in |
| Length | 480 in |
| Weight | 74000 lbs |
Description
This 1997 Caterpillar 3516B diesel generator is a refurbished powerhouse designed for mobile and temporary power applications such as disaster response or rental fleets. With an output of 1825 kW and operating at 1800 RPM, this unit delivers reliable prime power with a voltage of 277/480V and an amperage of 3007A. Housed in a sound-attenuated 40-foot container, it is mounted on a triple axle chassis and equipped with a UL142 listed 1250-gallon onboard fuel tank. This unit includes an EMCP4.4 digital control panel upgrade and features a range of components to ensure durability and ease of use. These include jacket water heater, heavy-duty air cleaners, internal exhaust silencer, and an auto start/safety shutdown system. The reconditioned generator end and radiator, along with all new fluids and filters, contribute to its restored condition. Moreover, it is protected by a 24-month or 1500-hour Platinum OPC warranty through Caterpillar for peace of mind. The trailer includes a title, new tires, and full cosmetic refreshment such as paint and new decals, ensuring it not only performs well but also presents well for any job site. Furthermore, all access doors, louvers, and seals have been inspected and replaced as needed. This unit provides a comprehensive power solution with modernized specifications and attention to detail.
A detailed list of features, components and service work regarding this machine are listed below:
Sound Attenuated 40' Containerized Power Module
40' Triple Axle Chassis with Title
UL142 Listed 1250G On-Board Fuel Tank
Caterpillar 3516B Prime Rated Diesel Generator Set
Jacket Water Heater
Battery Charger
Battery Charging Alternator
Battery Rack
Batteries
Battery Disconnect Switch
Heavy Duty Air Cleaners
Auto Start / Safety Shutdowns
Internal Exhaust Silencer
EMCP4.4 Digital Control Panel Upgrade
Basler Relay for Utility Paralleling
3200A Main Line Circuit Breaker
Level 2 Engine Overhaul
Radiator Reconditioned (Disassemble, Clean, Tanks Epoxy Coated, Test, Paint)
Generator End Recondition (Clean, Dip & Bake, New Bearing, Paint)
All New Fluids and Filters
Container and Chassis Paint & New Decals
Access Doors and Louvers Inspected, Painted and/or Replaced as Necessary
Access Door Seals Replaced
New Tires
4 Hour Load Test Upon Completion
24 Month / 2000 Hour Platinum OPC Warranty Through Caterpillar
12 Month Limited Warranty on Packaging
