NEW CUMMINS C500N6B 500KW STATIONARY GENERATOR SET

Location

Waukesha, WI

or
Call +1 281-467-7358

Specifications

ManufacturerCUMMINS
ModelC500N6B - GTA28
Year2026
ConditionNew
Serial NumberTBD
Stock NumberAES-C500N6B
KW500
HoursNEW
Fuel TypeNATURAL GAS
Amperage752 A
ApplicationSTANDBY, STATIONARY
DutySTANDBY
RPM1800
Voltage277 / 480V
Emissions RatingEPA CERTIFIED

Shipping details

Width92 in
Height121 in
Length307 in
Weight19845 lbs

Description

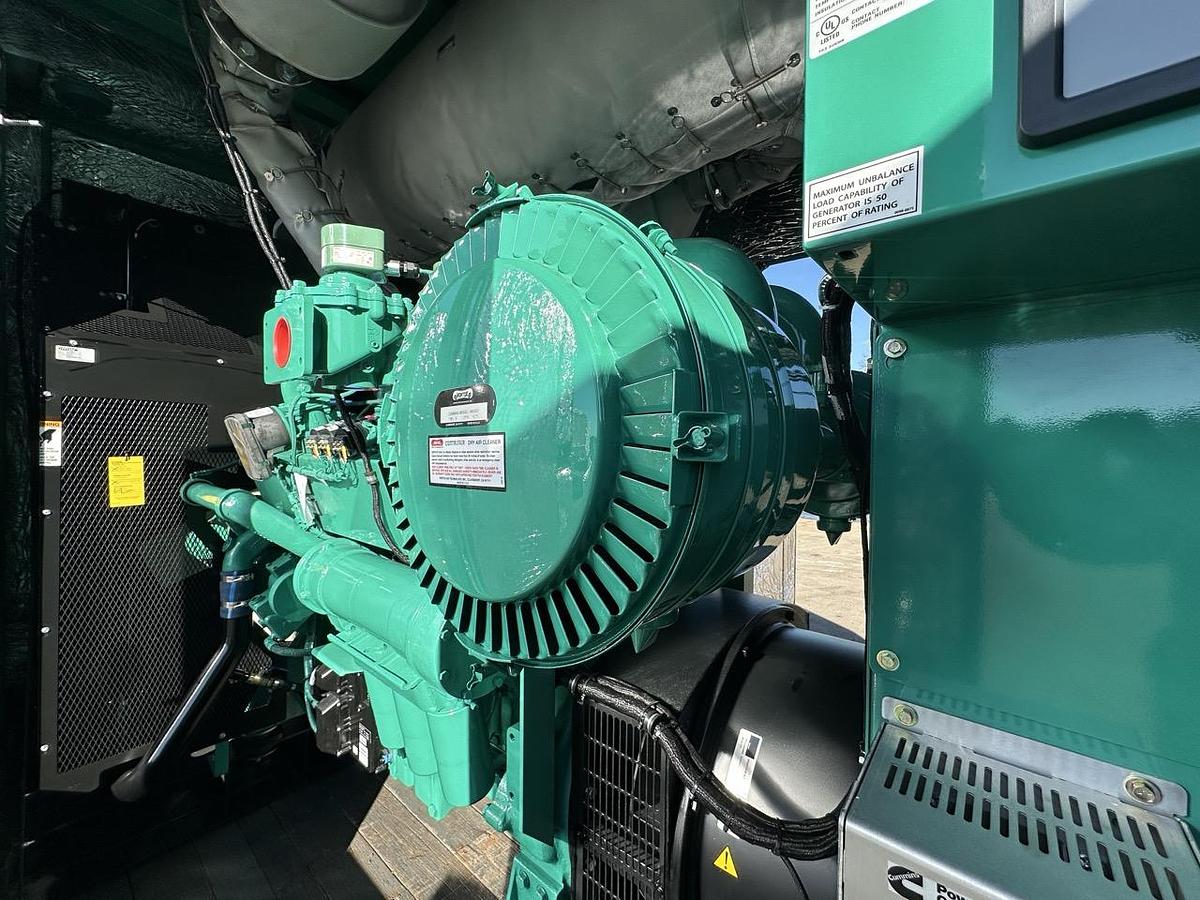

  • New Cummins 500 kW standby natural gas generator set, model C500N6B, SN-00916005. Cummins GTA 28E engine rated 770 HP at 1800 RPM, SN-99801549, EPA certified for stationary emergency and non-emergency applications. 3/60/277/480V, 12 lead reconnectable to other voltages. 800 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. UL 2200 listed package. Cummins PowerCommand 3.3 MLD utility-rated paralleling digital control panel. Sens battery charger 12 amp 120/208/240V. Coolant heater 4000W 240/480V. Catalyst, 5 in flange, NSPS 2/4/1. Level 2 sound attenuated galvaneal enclosure 100 MPH wind rating. 0 Hours. Year 2025. Cummins 2 Yr 1000 Hr limited warranty.

  • Overall dimensions 92W x 307L x 121H, 19,845 lbs
