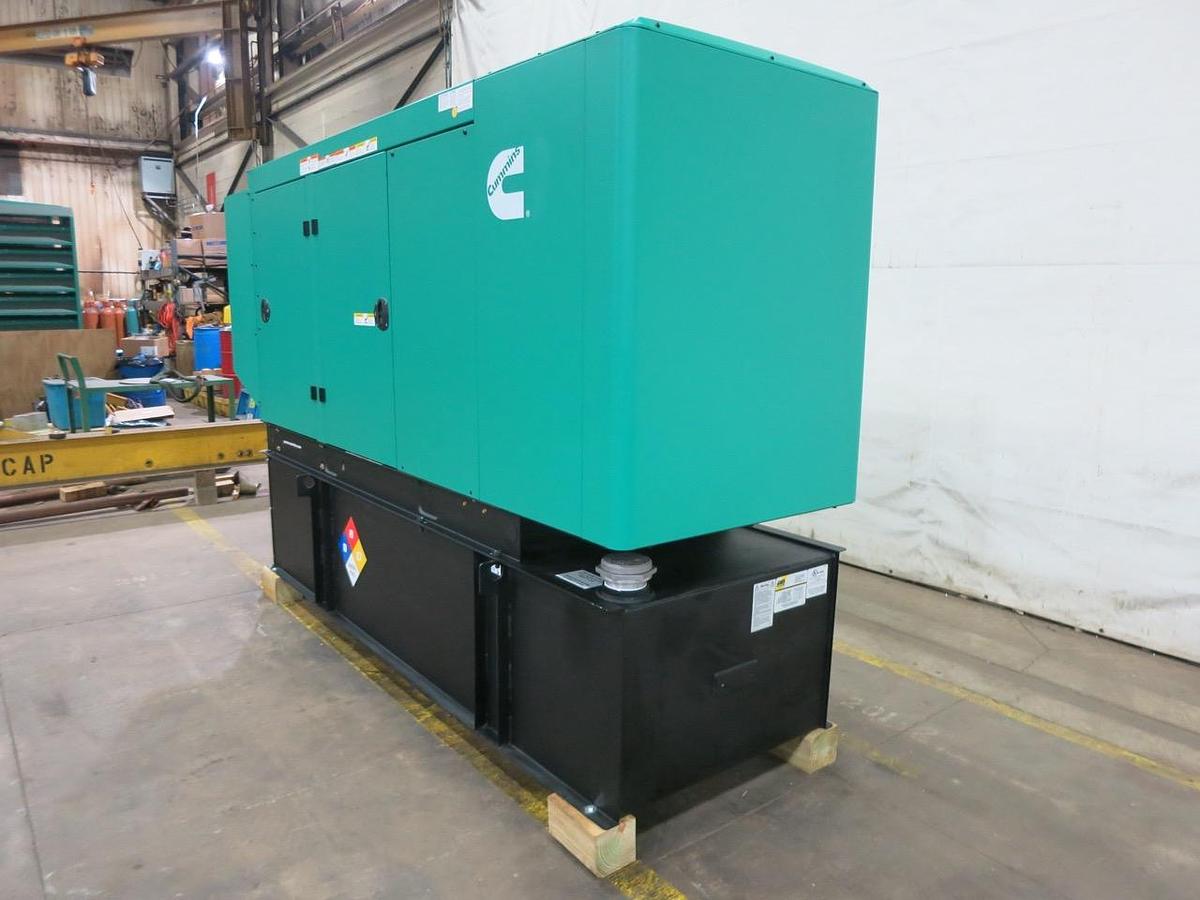

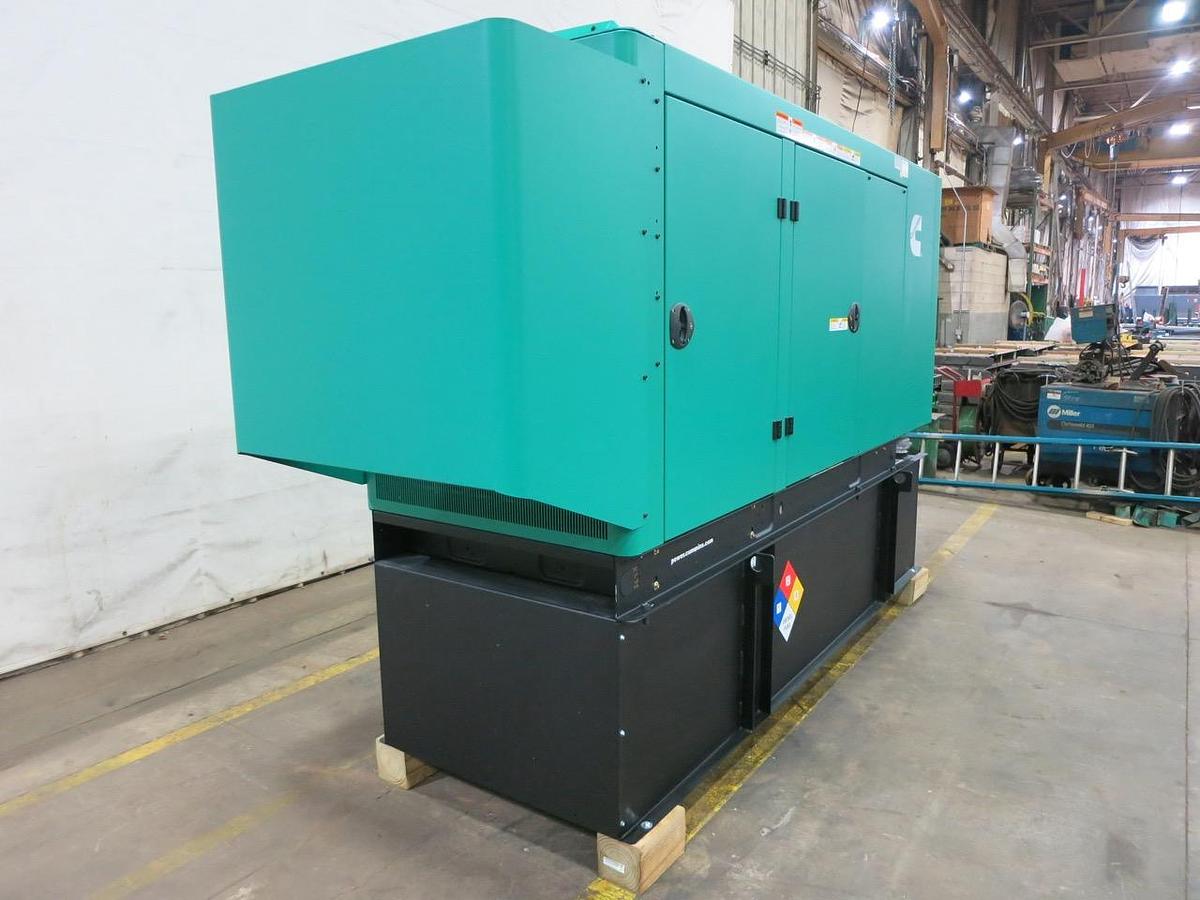

NEW CUMMINS C100D6C STATIONARY GENERATOR SET

Location

Waukesha, WI

or
Call +1 281-467-7358

Specifications

ManufacturerCUMMINS
ModelC100D6C - QSB5
Year2026
ConditionNew
Serial NumberTBD
Stock NumberAES-C100
KW100
HoursNEW
Fuel TypeDIESEL
Amperage347
ApplicationSTANDBY, STATIONARY
DutySTANDBY
RPM1800
Voltage120 / 208V
Emissions RatingEPA TIER 3

Shipping details

Width40 in
Height83 in
Length136 in
Weight3553 lbs

Description

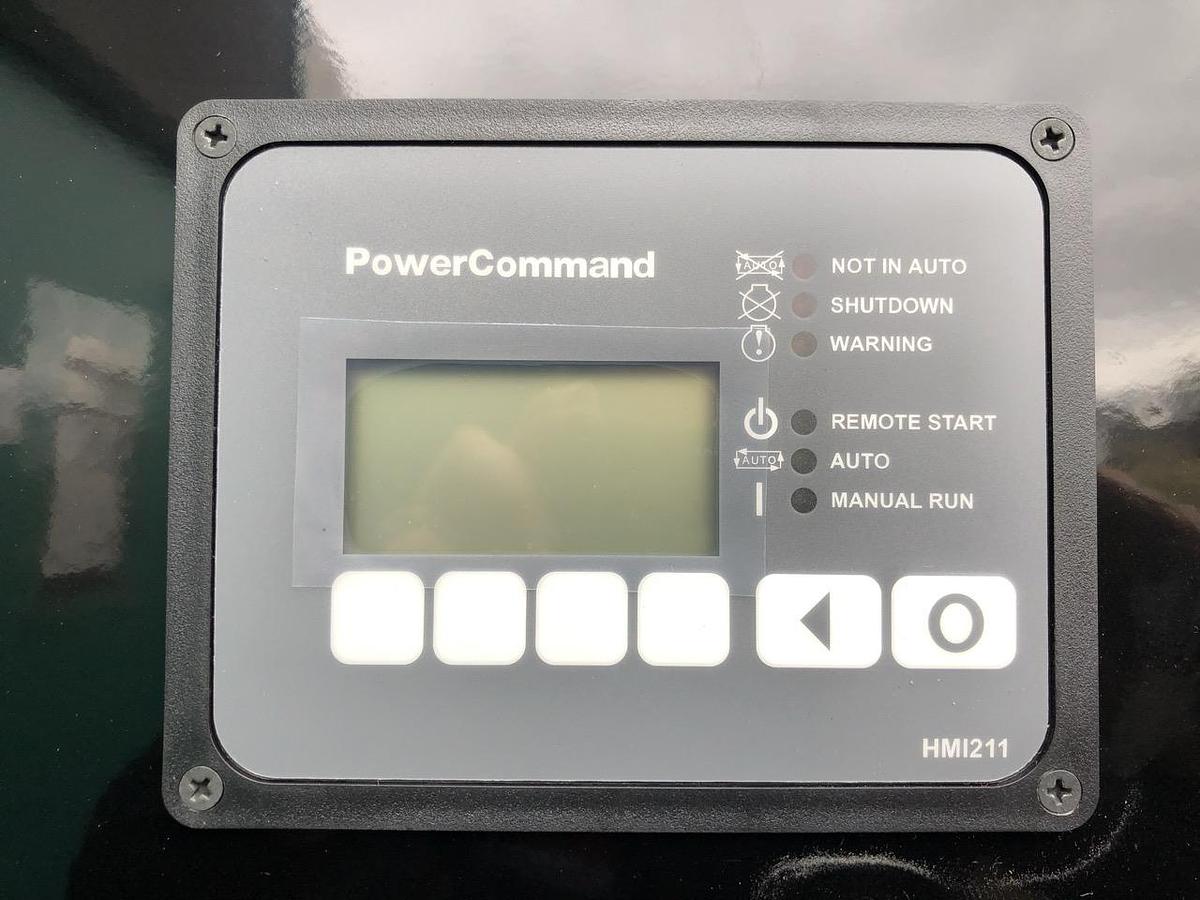

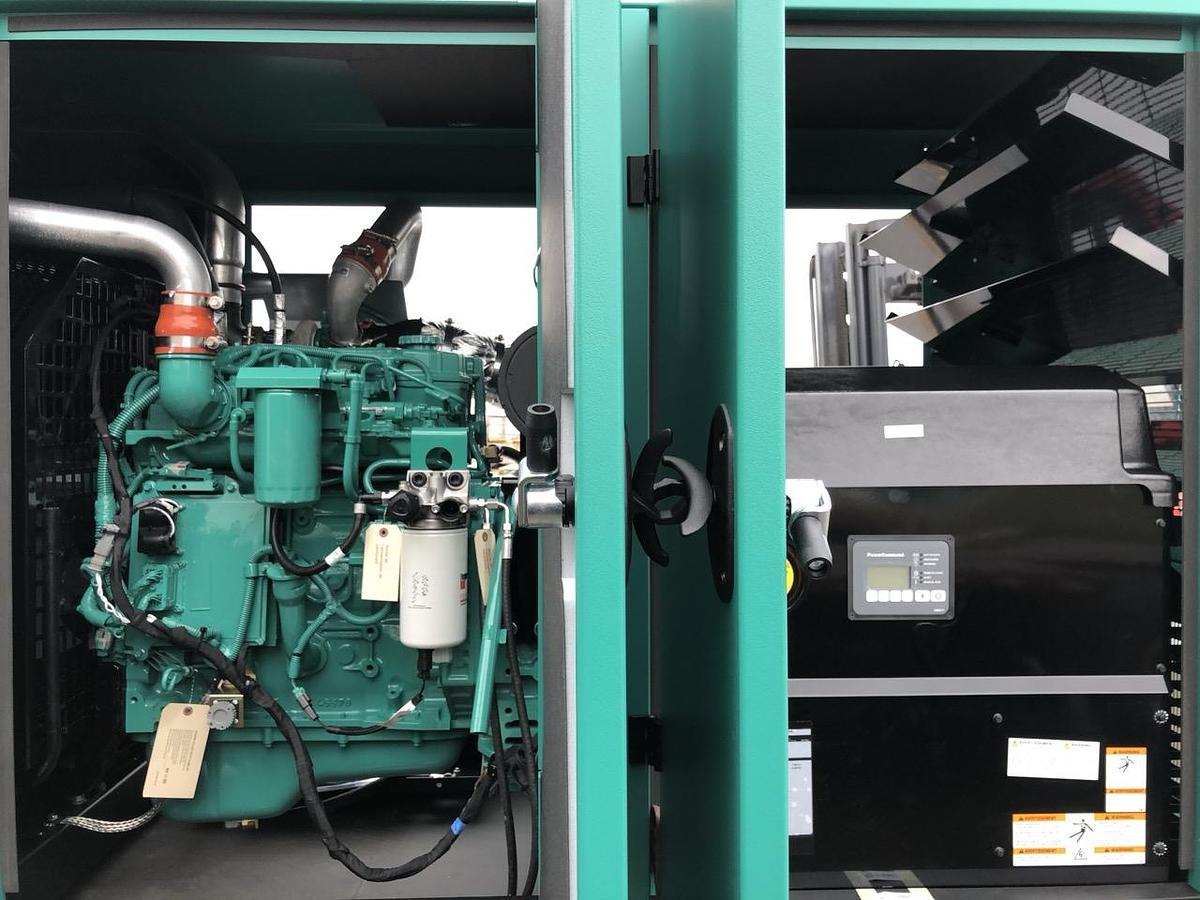

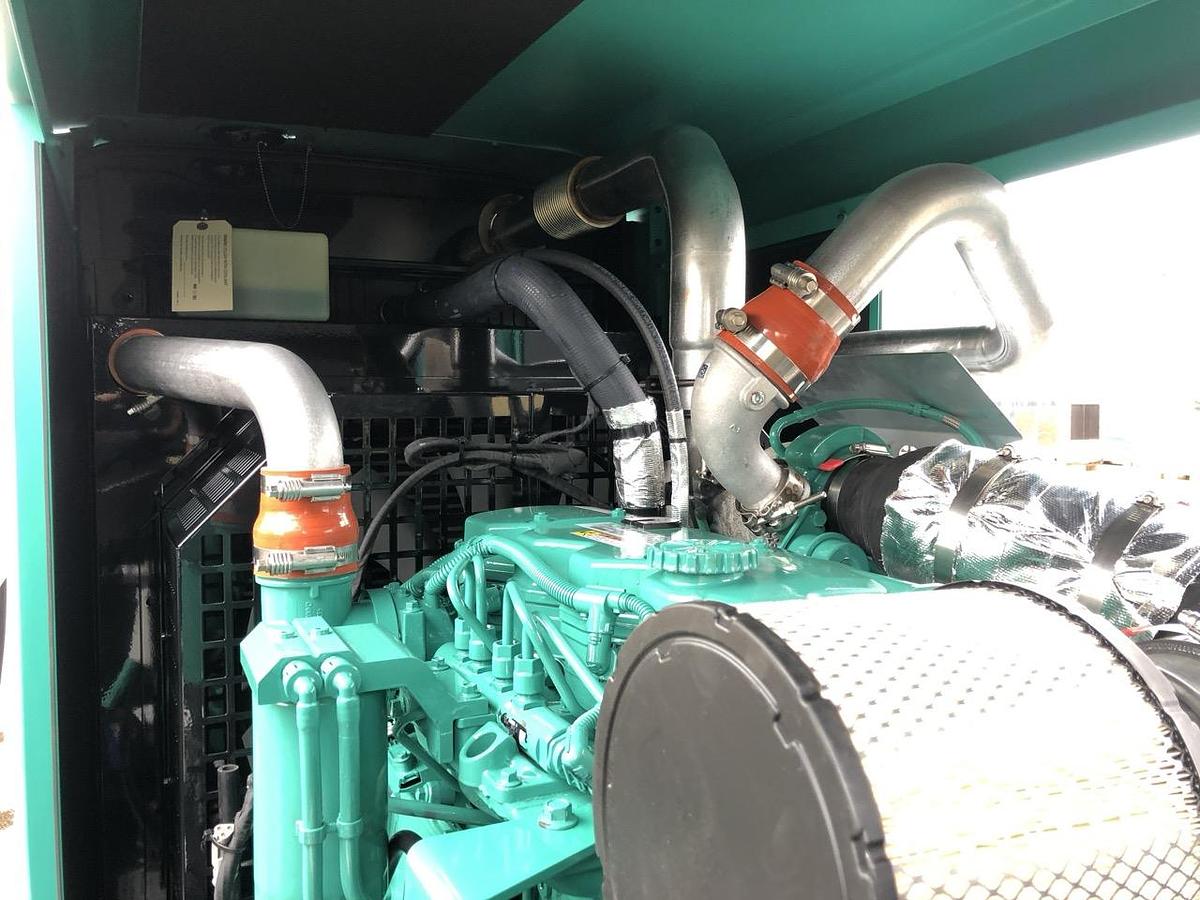

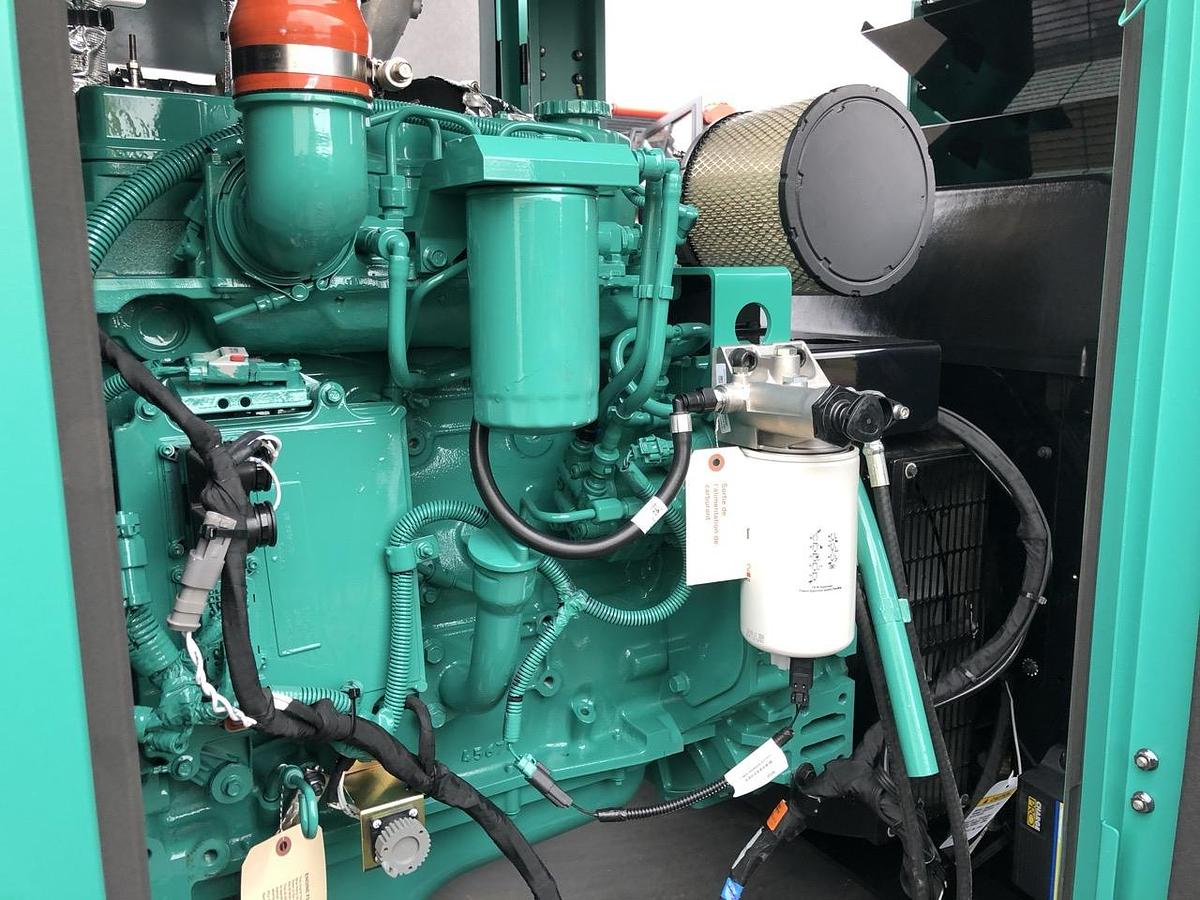

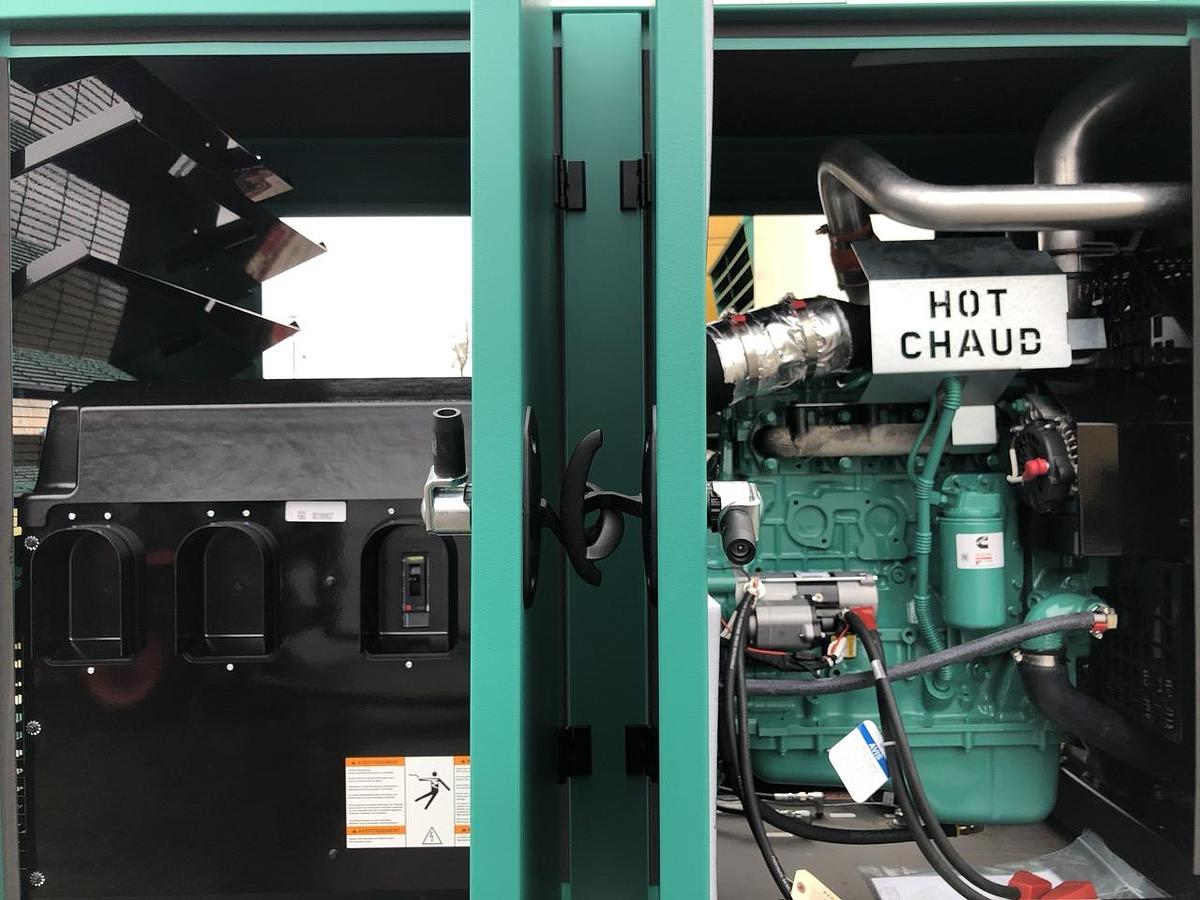

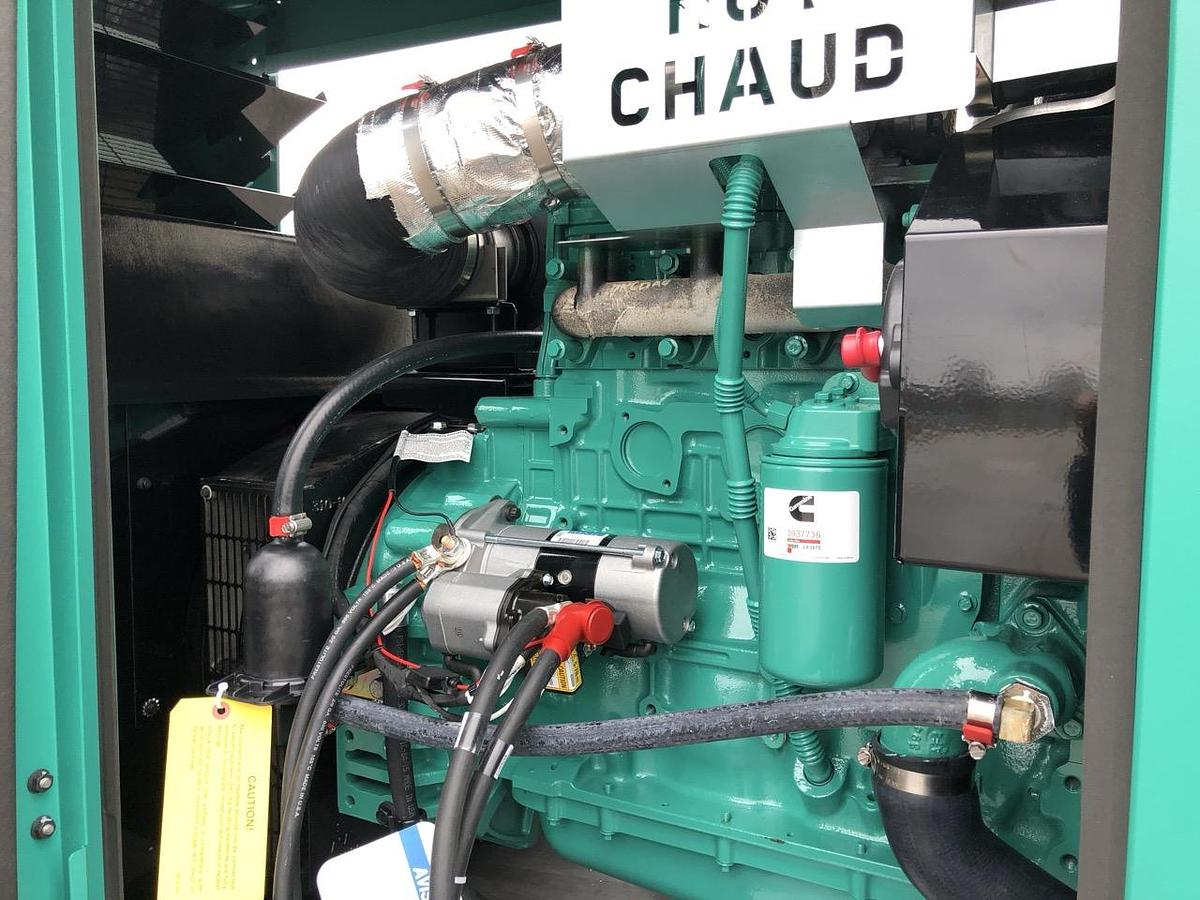

  • New Cummins 100 kW standby (90 kW prime) diesel generator set, model C100D6C. Cummins QSB5-G13 NR3 engine rated 173 HP at 1800 RPM, EPA Tier 3 emissions. 3/60/120/208V, 12 lead reconnectable to other voltages. 400 Amp main-line circuit breaker. PMG permanent magnet generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. PowerCommand 1.1 digital control panel. Battery charger. Coolant heater. Aluminum sound attenauated level 2 enclosure wind load 180 MPH. 260 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2026. Cummins 2 Yr 1000 Hr limited warranty.

  • Overall dimensions 40W x 136L x 83H, 3553 lbs. Sound level 2 intake baffle ships loose 50W x 68L x 26H, 135 lbs.
