NEW CUMMINS C150D6D STATIONARY GENERATOR SET

Location

Waukesha, WI

or
Call +1 281-467-7358

Specifications

ManufacturerCUMMINS
ModelC150D6D - QSB7
Year2026
ConditionNew
Serial NumberTBD
Stock NumberAES-C150
KW150
HoursNEW
Fuel TypeDIESEL
Amperage520 A
ApplicationSTANDBY, STATIONARY
DutySTANDBY
RPM1800
Voltage120 / 208V
Emissions RatingEPA TIER 3

Shipping details

Width40 in
Height93 in
Length180 in
Weight5148 lbs

Description

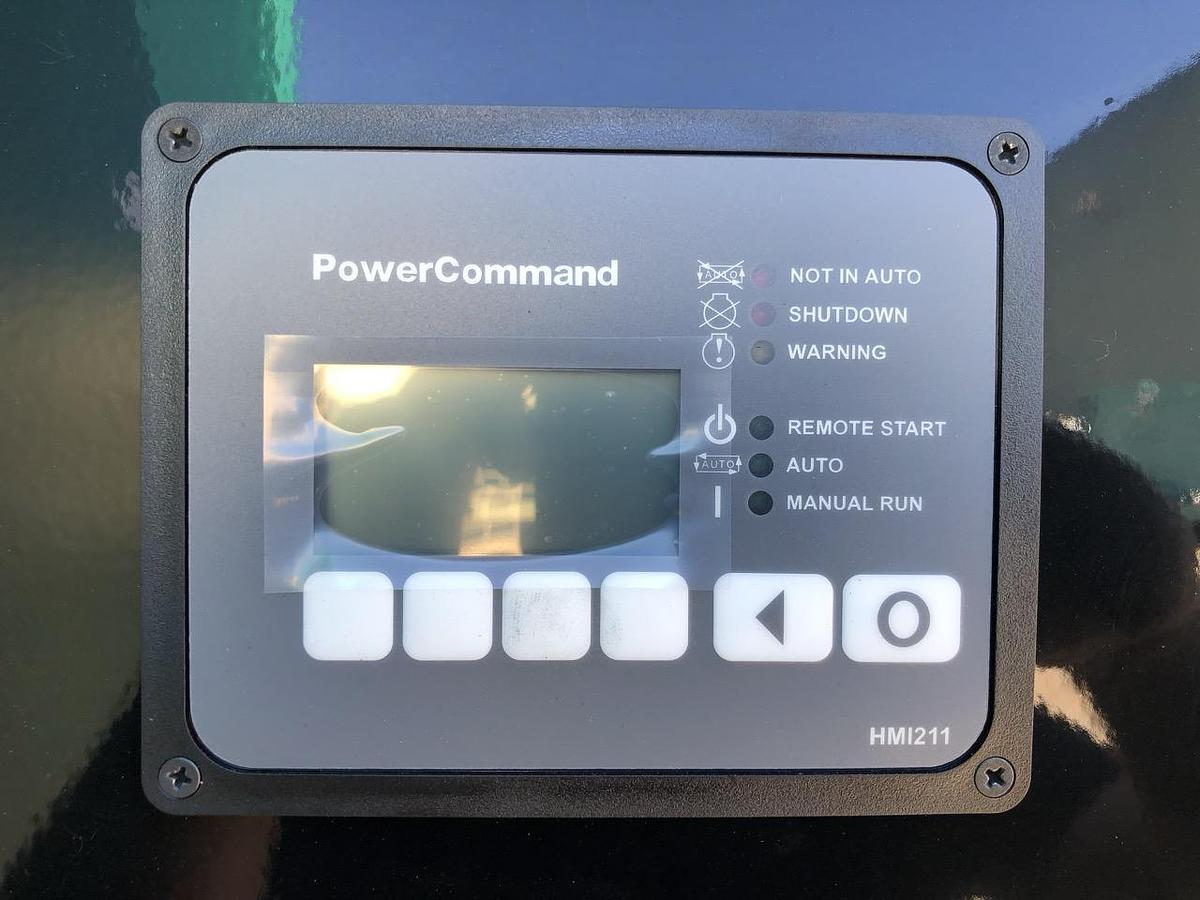

  • New Cummins 150 kW standby (135 kW prime) diesel generator set, model C150D6D. Cummins QSB7-G5 engine rated 324 HP at 1800 RPM, EPA Tier 3 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 200-600 Amp main-line circuit breaker. PMG permanent magnet generator. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. Battery charger. Coolant heater. PowerCommand 1.1 digital control panel. Aluminum sound attenuated level 2 enclosure wind load 180 MPH. 350 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2026. Cummins 2 Yr 1000 Hr limited warranty.

  • Overall dimensions 40W x 180L x 93H, 5148 lbs, ships on 60W x 193L x 7H skid. Sound level 2 intake baffle ship loose 50W x 68L x 26H, 135 lbs.
