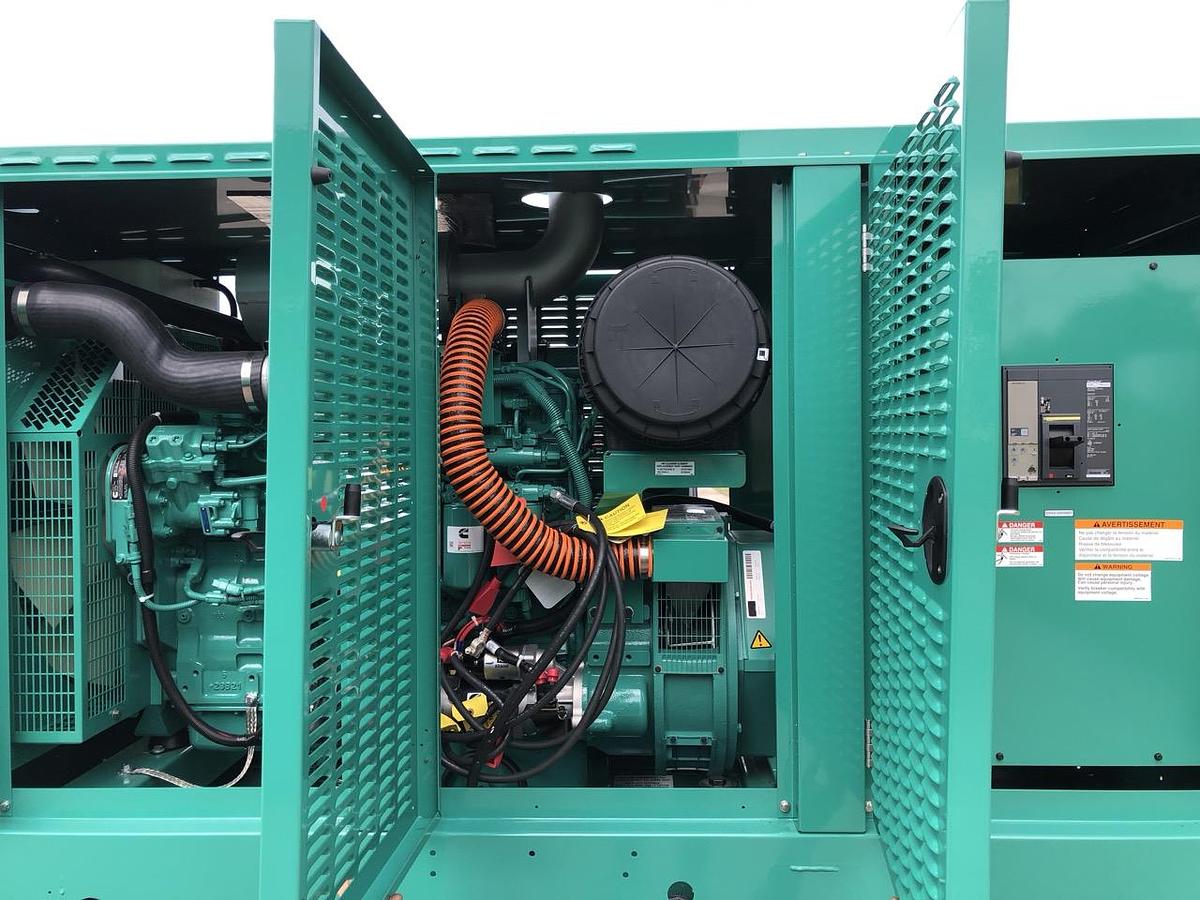

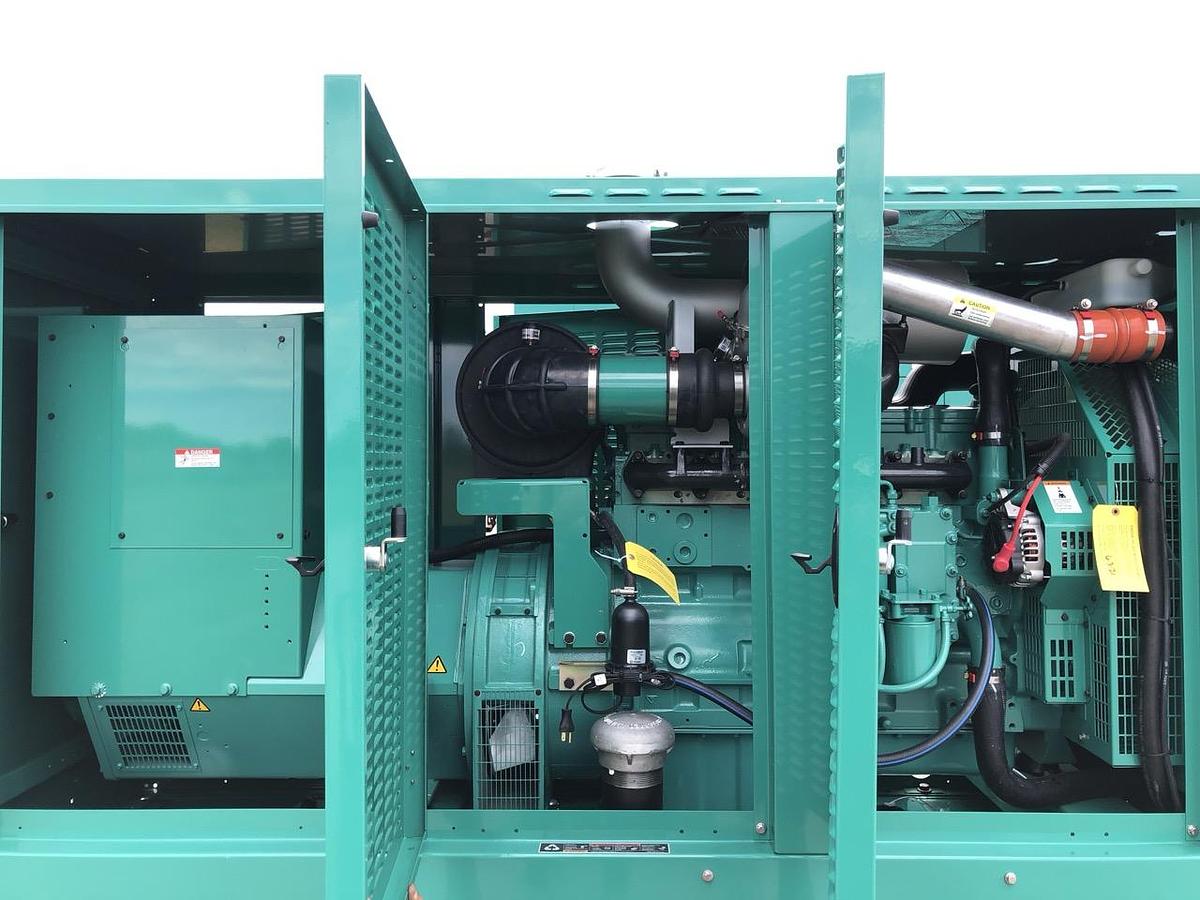

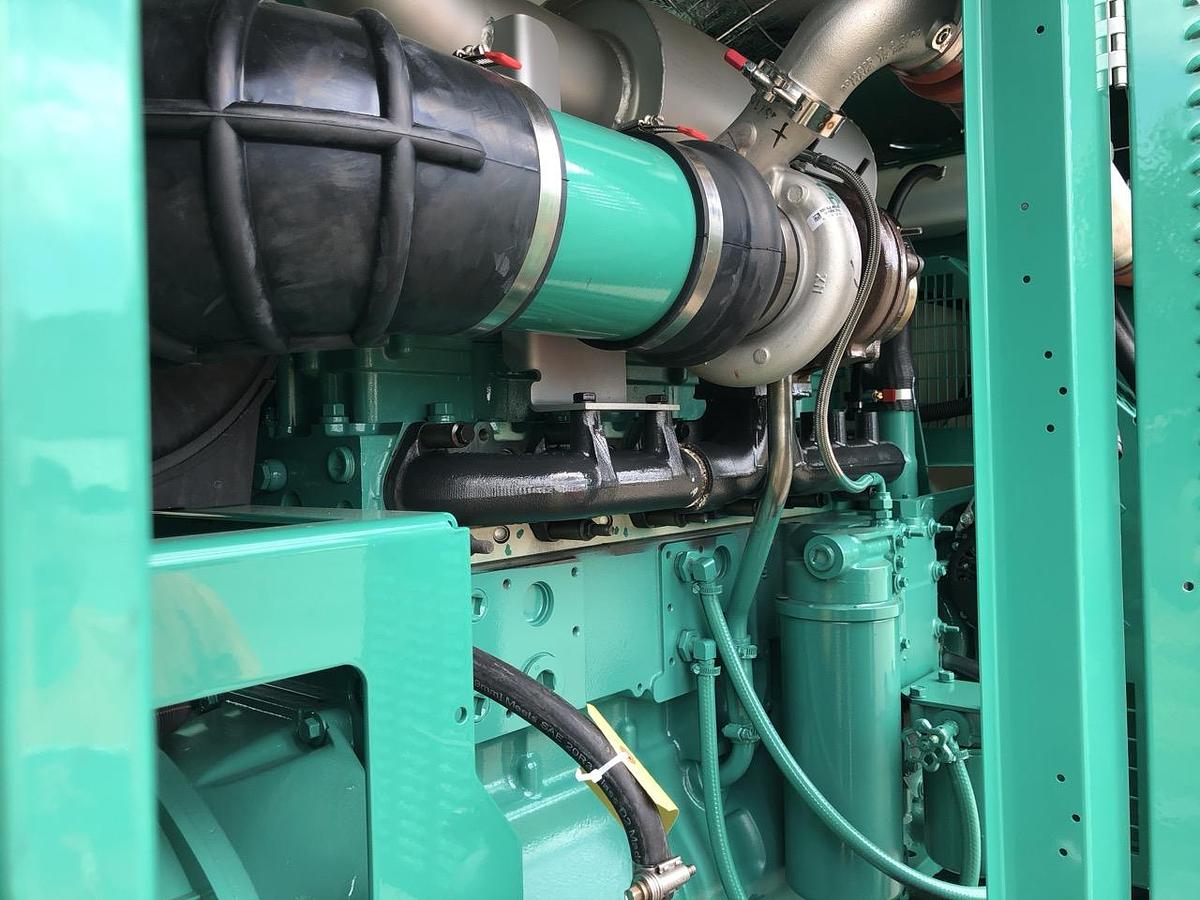

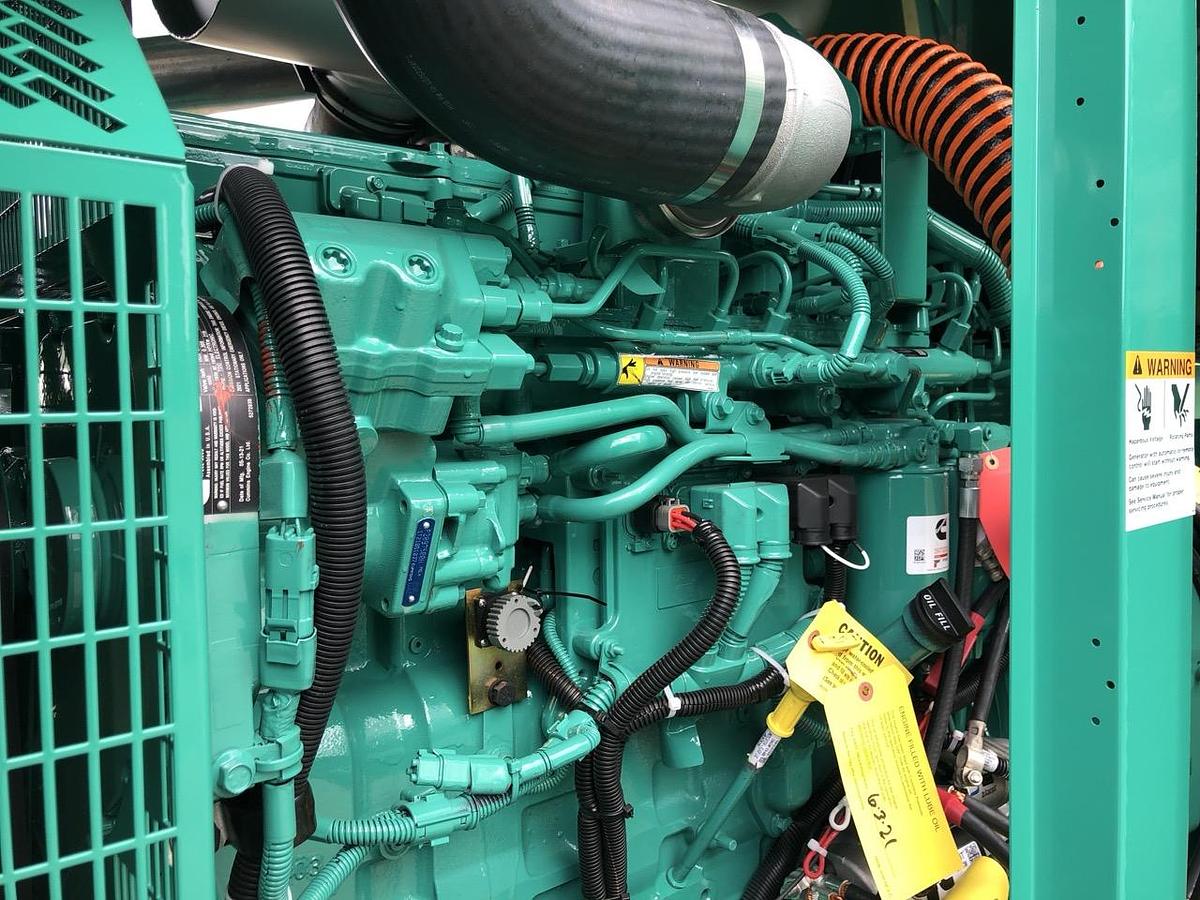

The new Cummins DSHAD stationary generator set is a robust solution for reliable power needs, offering a 230 kW standby capacity and a 209 kW prime output. Powered by the Cummins QSL9-G2 NR3 engine, rated at 364 HP at 1800 RPM, it complies with EPA Tier 3 emissions standards. This model features a 3-phase, 60 Hz, 12-lead reconnectable voltage system primarily set at 120/208V.

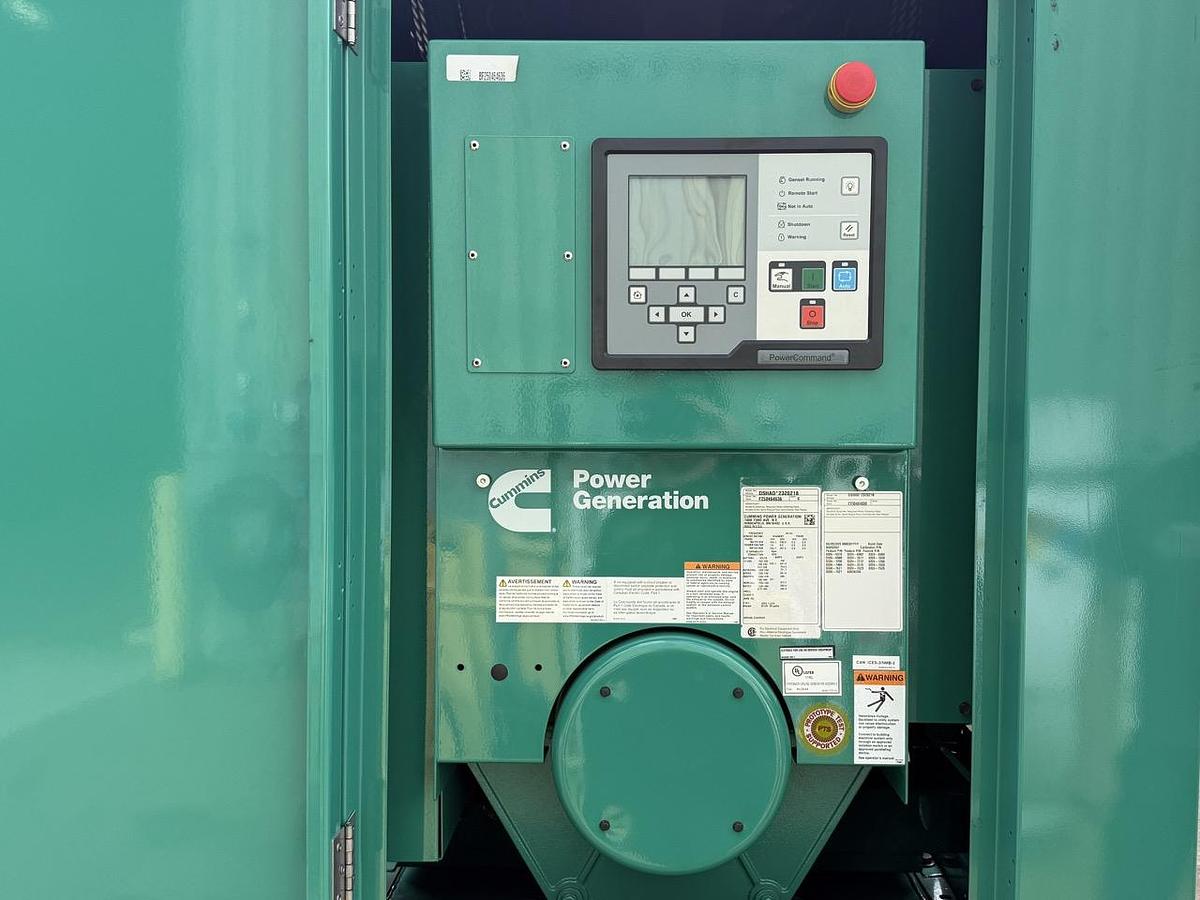

This generator incorporates an 800 Amp main-line circuit breaker and is equipped with a PMG permanent magnet generator. The set's engine cooling radiator efficiently manages heat in environments with up to 50C/122F ambient temperatures. The generator set includes a UL 2200 listed package and a PowerCommand 2.3 digital control panel. An EnerGenius 10 Amp battery charger and a coolant heater compatible with 208/240/480V are included, although batteries and start-up services are not provided.

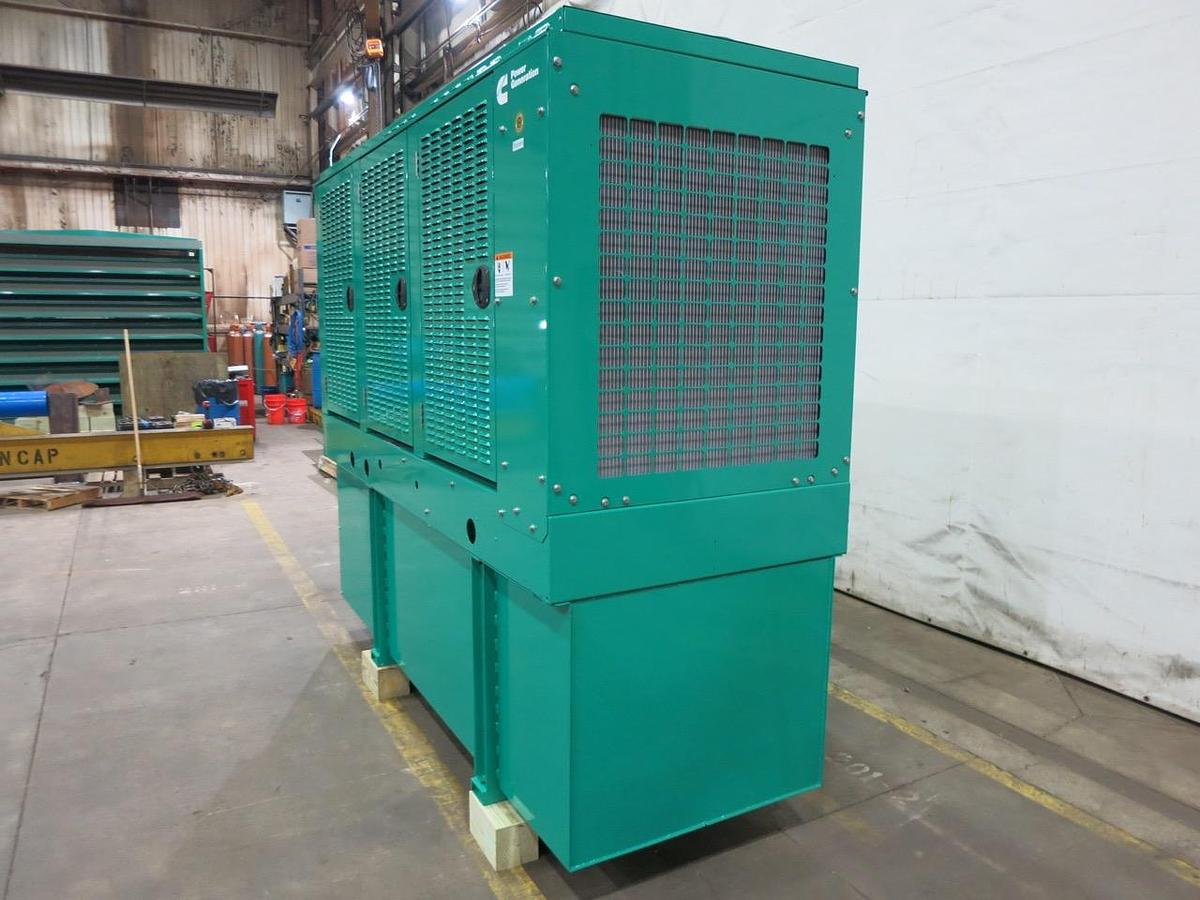

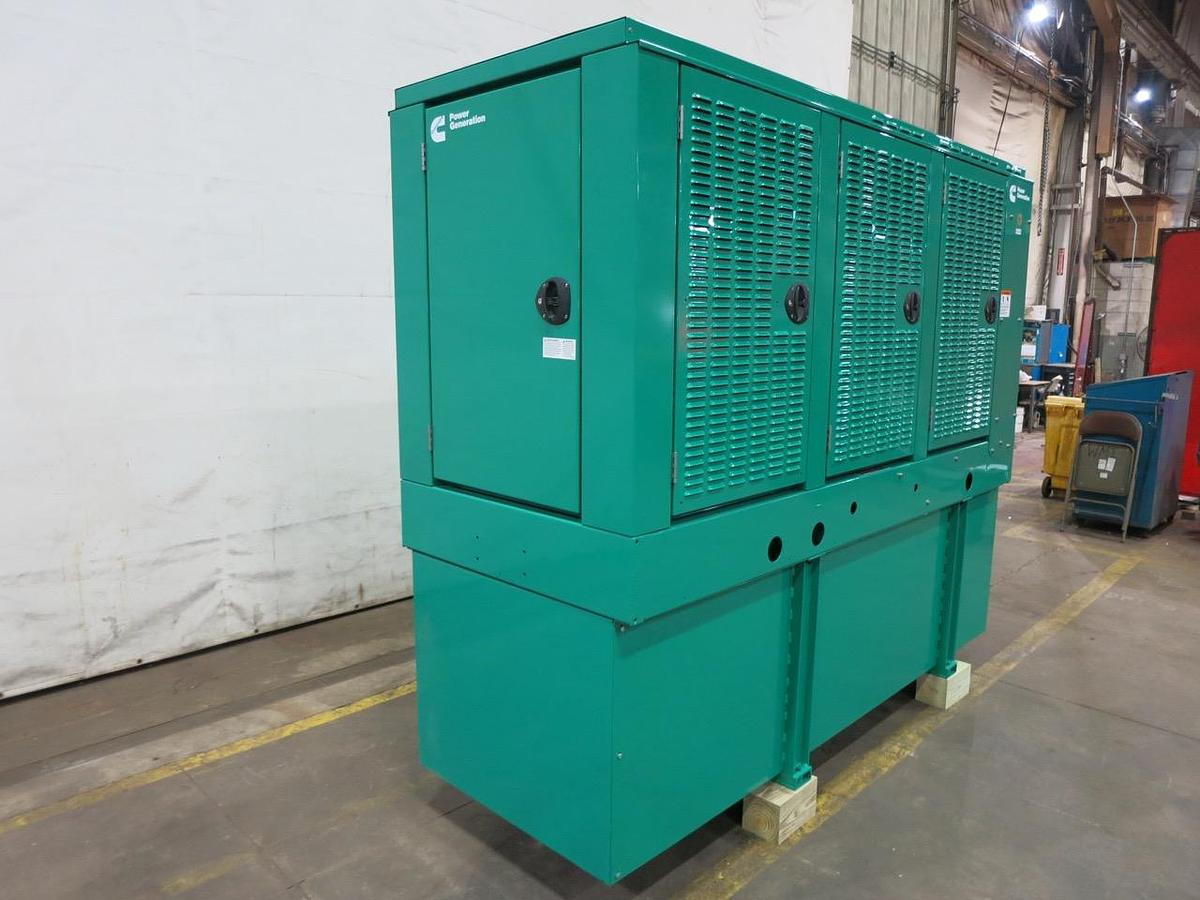

Enclosed in a weather-resistant housing, this generator comes with a 336-gallon UL142 sub-base fuel tank with secondary containment. Its dimensions are 40 inches wide, 105 inches long, and 88 inches high, weighing 4811 lbs, with shipping dimensions of 45 inches wide and 117 inches long. The product is new with zero hours of operation and includes a Cummins two-year or 1000-hour limited warranty, making it an excellent choice for dependable standby power.
