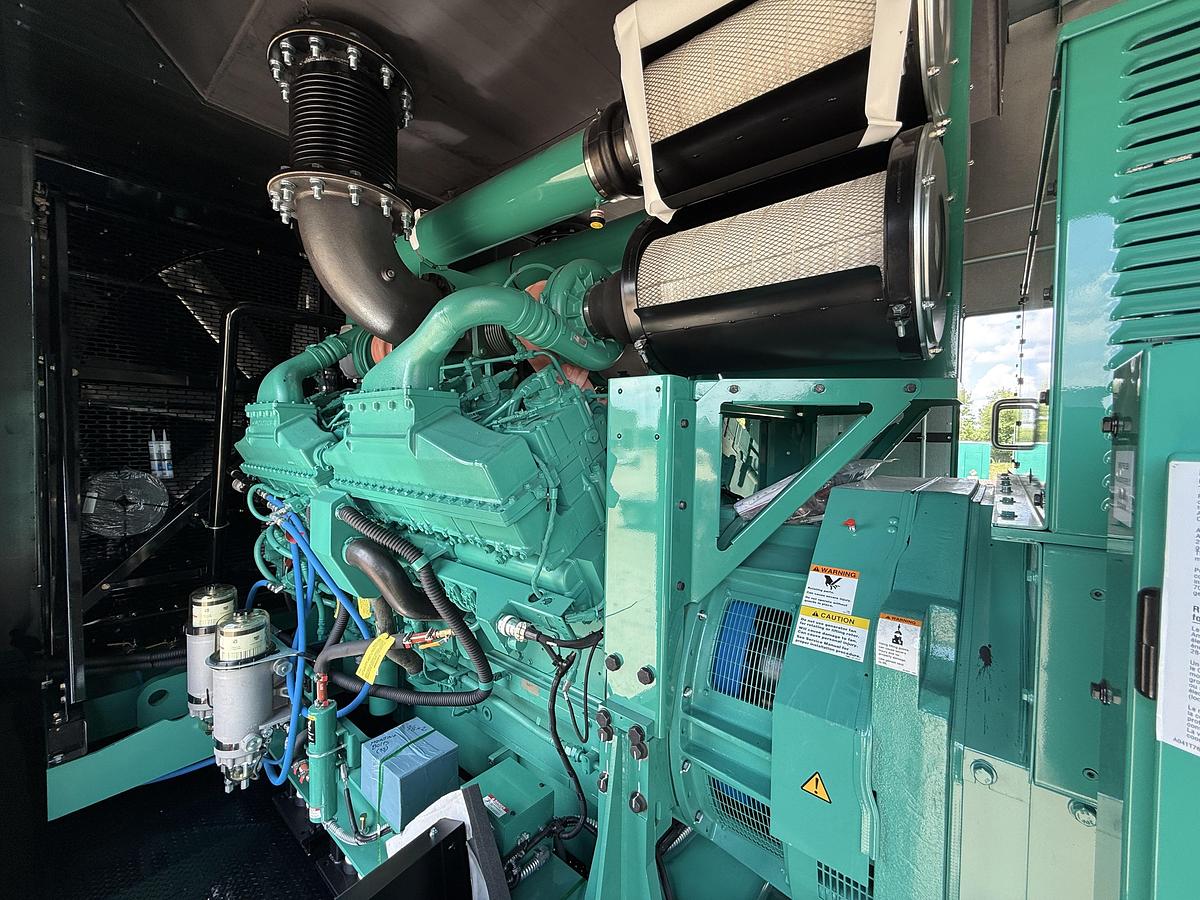

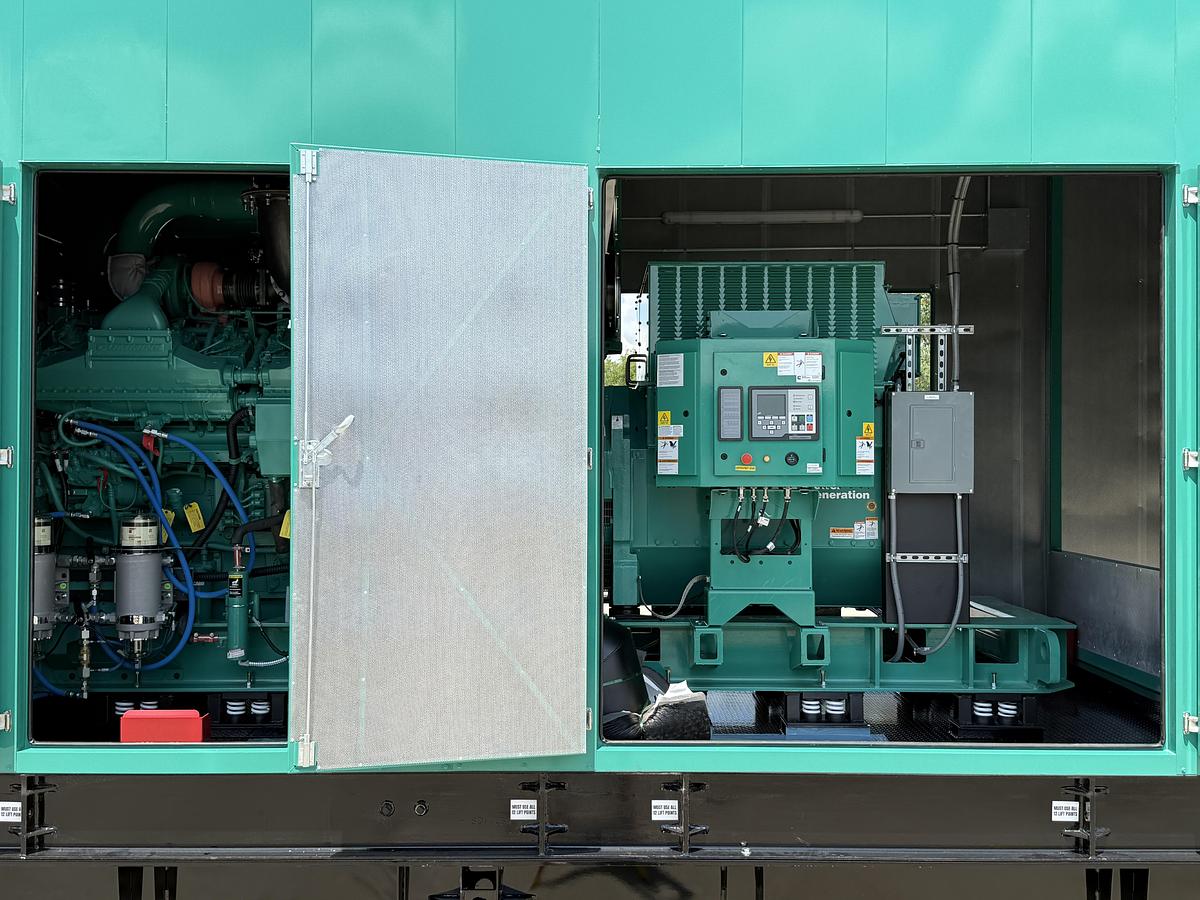

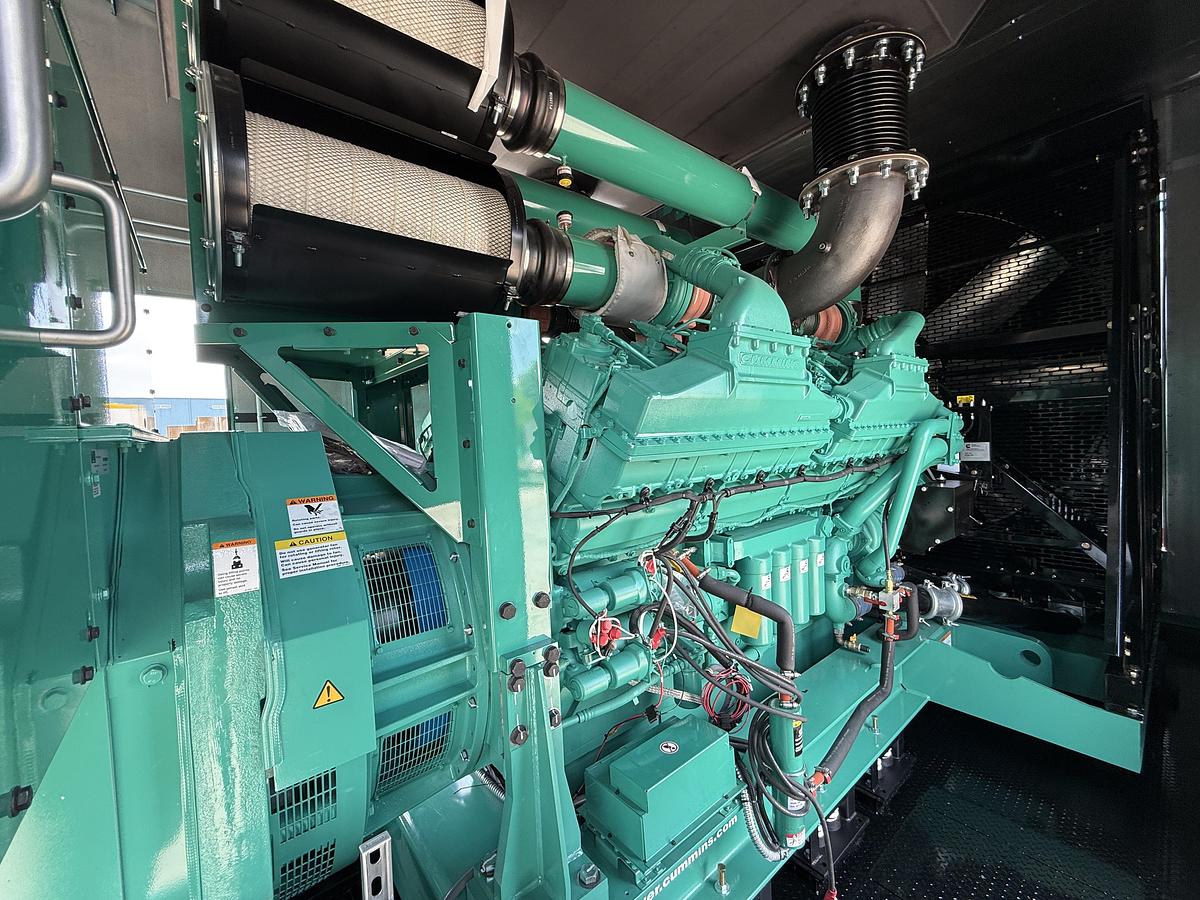

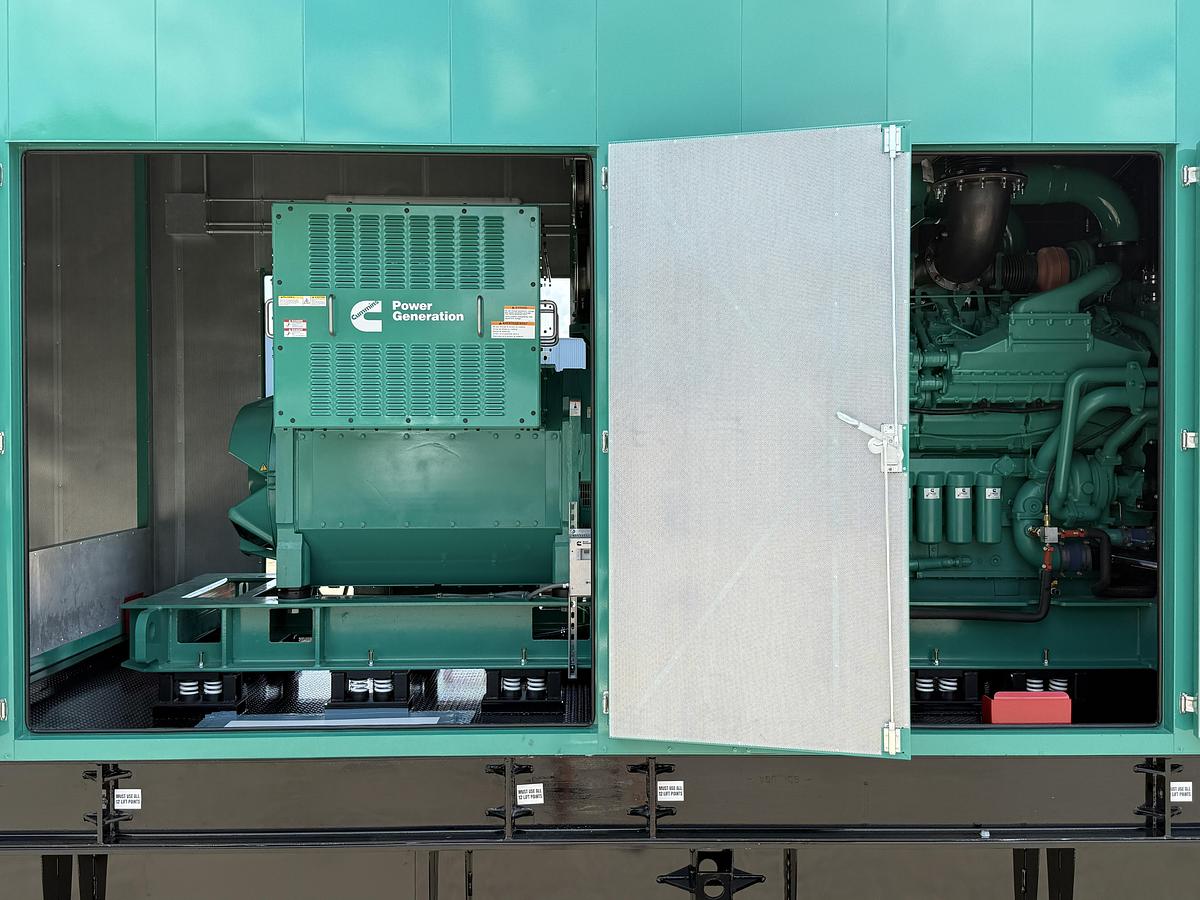

The New Cummins DQKAN Stationary Generator Set is a high-performance diesel generator designed for standby applications, boasting a power output of 2500 kW for standby and 2250 kW prime. It is powered by a robust Cummins QSK60-G19 NR2 engine, delivering 3640 horsepower at 1800 RPM, and complies with EPA Tier 2 emissions standards. The generator operates on a 3-phase, 60 Hz, 277/480V electrical system, with an oversized generator end rated at 2840 kW. Notably, it requires a circuit breaker, which is optional at an additional cost of either 3000 Amp or 4000 Amp.

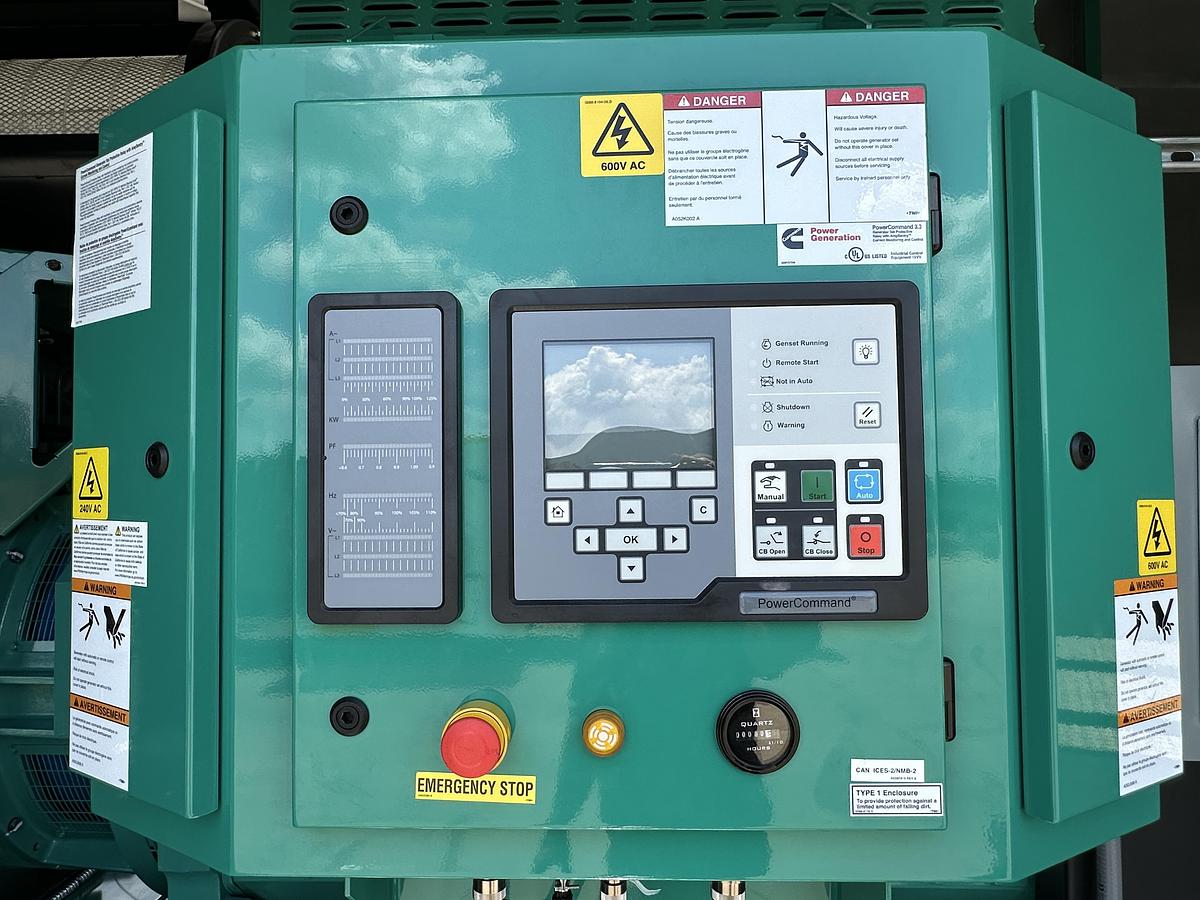

The unit comes with a range of advanced features including a PowerCommand 3.3 digital control panel that supports paralleling and an AmpSentry UL-listed protective relay. For effective operation in challenging conditions, it includes a high ambient radiator, alternator heater, and coolant heater adaptable to various voltages. The EnerGenius 10 Amp battery charger maintains reliable performance alongside an optional Global Power Components sound attenuated enclosure housing a substantial 3750-gallon UL 142 sub-base fuel tank with secondary containment.

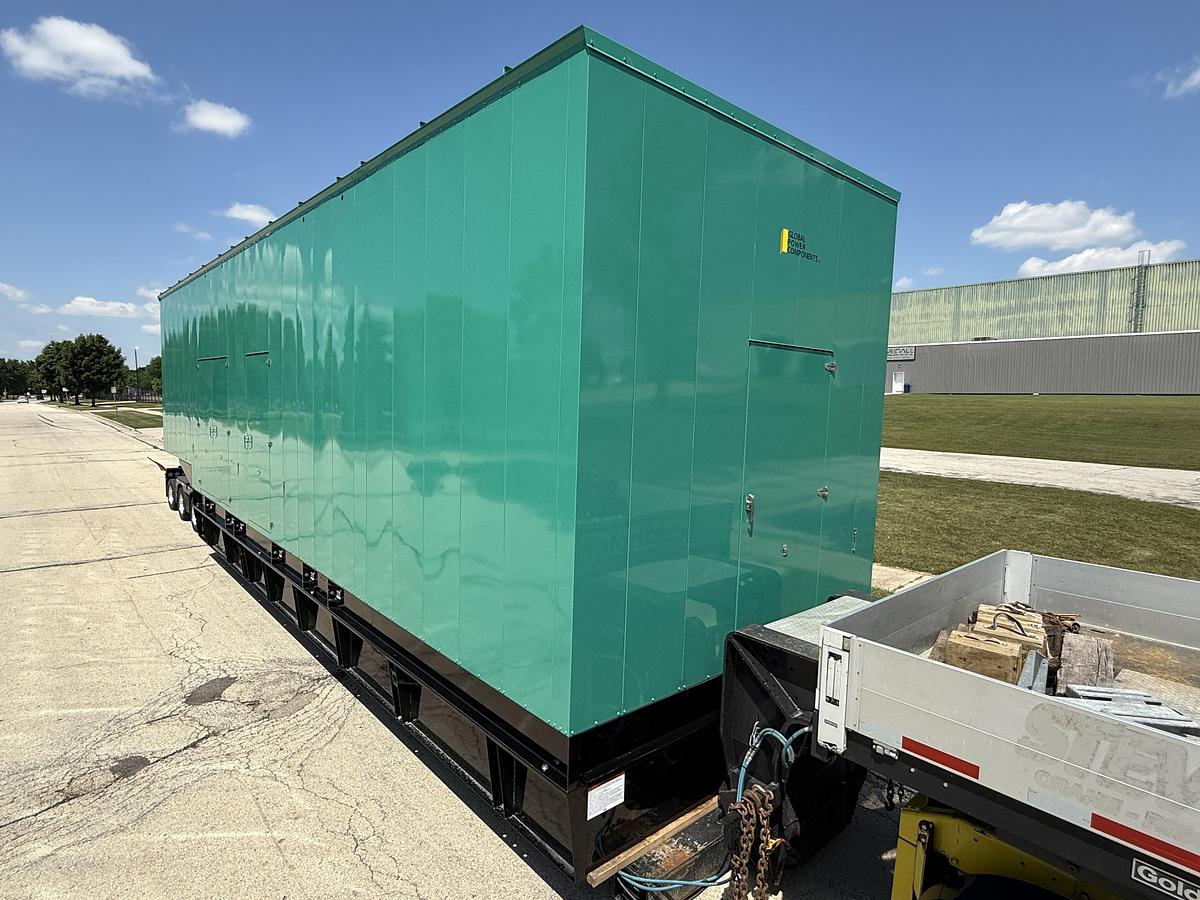

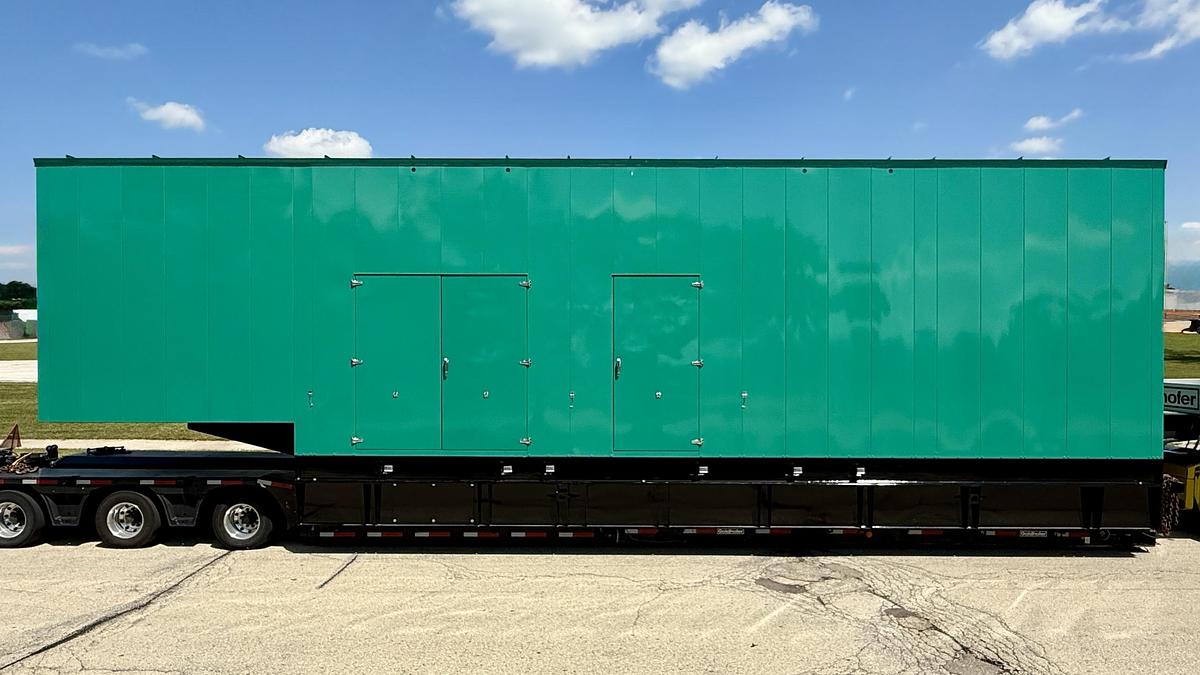

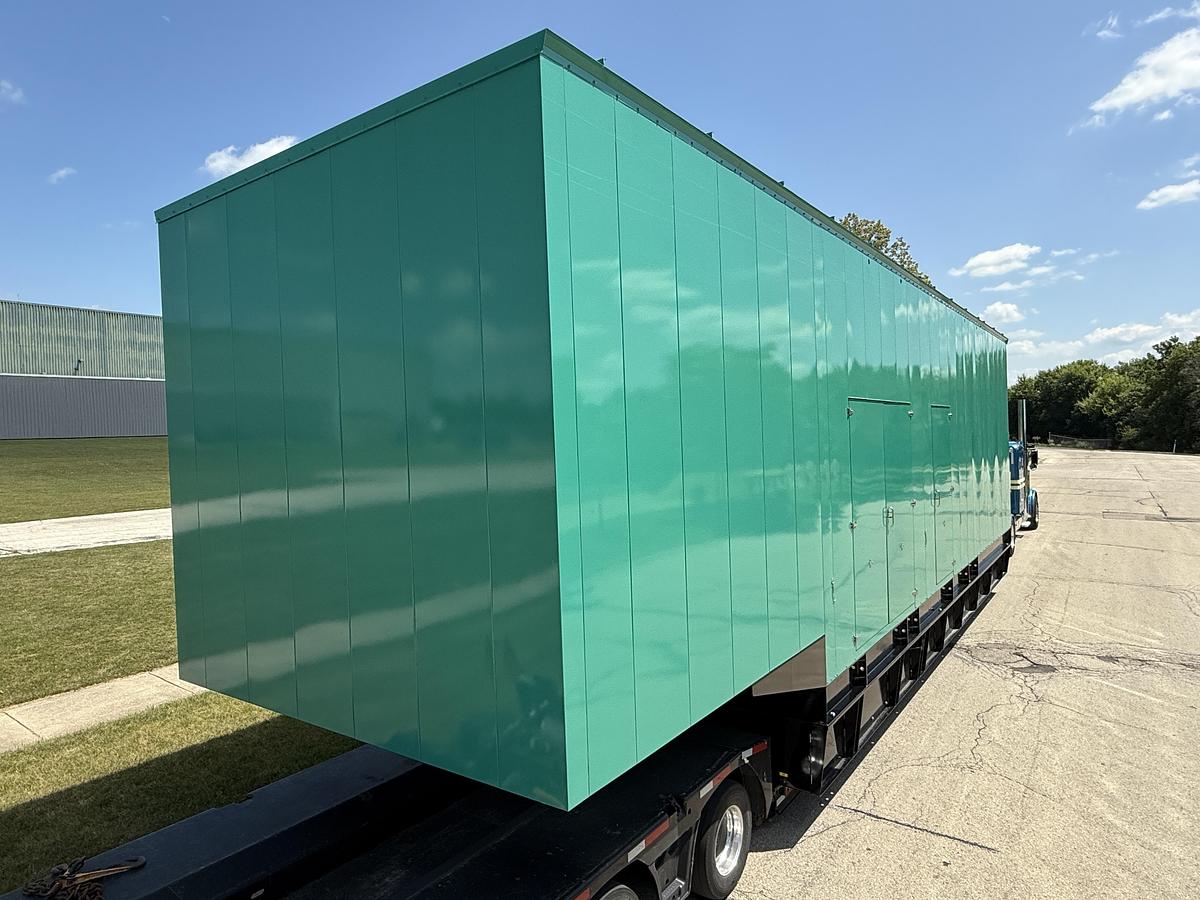

The Cummins DQKAN generator set is packaged within an enclosure with an overall dimension of 142W x 552L x 163H inches, weighing 74,000 lbs, while the fuel tank measures 138W x 426L x 36H inches, adding 12,000 lbs. It includes a standard two-year warranty, but batteries and startup services are not included. This generator is ideal for facilities requiring robust and reliable backup power solutions.
