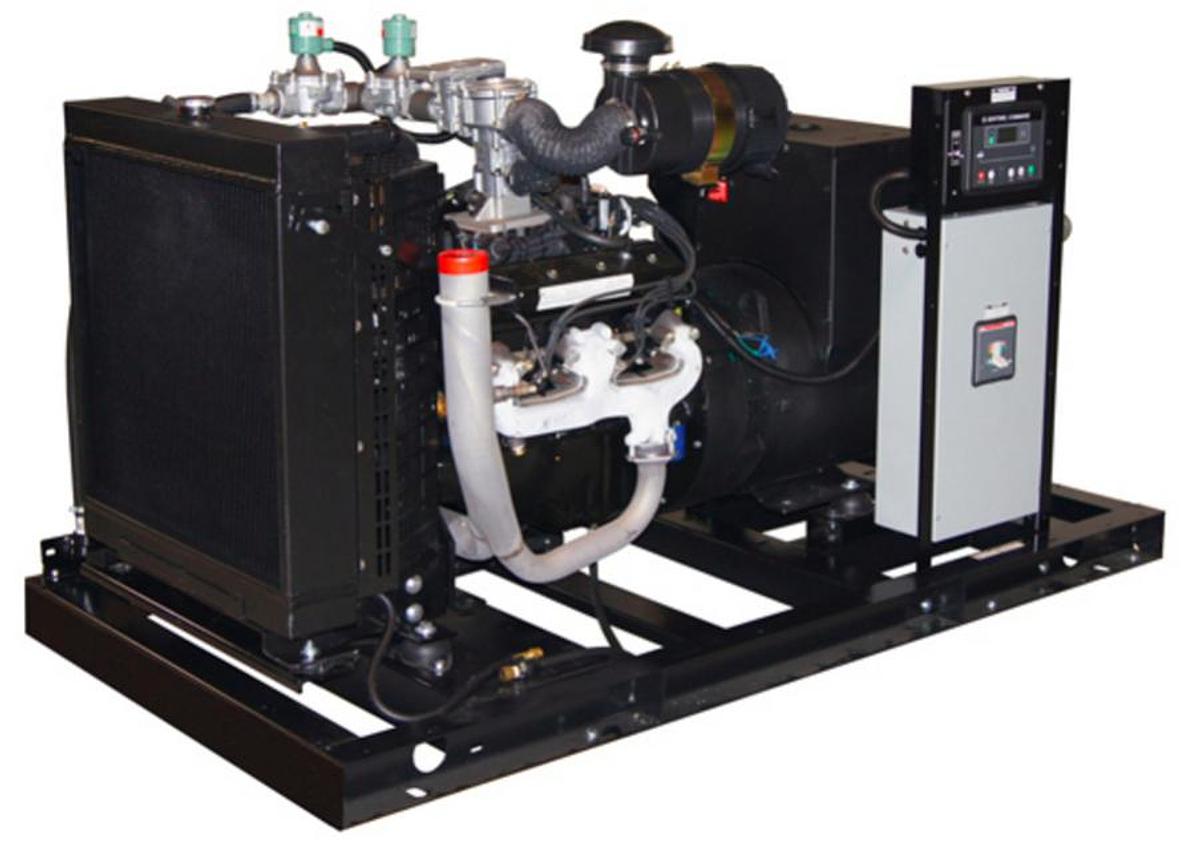

NEW GILLETTE SP-620 STATIONARY GENERATOR SET

Location

Katy, TX

or
Call +1 281-467-7358

Specifications

ManufacturerGILLETTE
ModelSP-620-3
Year2025
ConditionNew
Serial NumberTBD
Stock NumberAES-GIL620
KW60
HoursNEW
Fuel TypeNATURAL GAS, PROPANE
Amperage208 Amps @ 208V / 90 Amps @ 480V
ApplicationSTANDBY, STATIONARY
DutySTANDBY
RPM1800 RPM
VoltageMultiple Voltage Options
Emissions RatingEPA 40CFR Part 60, 1048, 1054, 1065, 1068

Shipping details

Width42 in
Height53 in
Length94 in
Weight2520 lbs

Description

  • RATINGS ARE FOR NATURAL GAS FUEL – PROPANE RATINGS WILL DIFFER
  • 3 PHASE VOLTAGE OPTIONS
  • 120/208V
  • 120/240V
  • 277/480V
  • 346/600V
  • 120/208V
  • 120/240V
  • 277/480V
  • 346/600V
  • GENERATOR END INFORMATION
  • STAMFORD GENERATOR END
  • CLASS H INSULATION
  • 130 DEGREE (C) TEMP RISE
  • SINGLE BEARING
  • 24 MONTH WARRANTY FROM DATE OF STARTUP OR 1000 HRS OPERATION
  • STAMFORD GENERATOR END
  • CLASS H INSULATION
  • 130 DEGREE (C) TEMP RISE
  • SINGLE BEARING
  • 24 MONTH WARRANTY FROM DATE OF STARTUP OR 1000 HRS OPERATION
  • ENGINE INFORMATION
  • PSI (POWER SOLUTIONS INTERNATIONAL) 5.7L ENGINE
  • NATURALLY ASPIRATED
  • 9.1:1 COMPRESSION RATIO
  • STANDARD AIR CLEANER
  • 1800 RPM ENGINE SPEED
  • 100 HP NATURAL GAS RATING
  • 12 MONTH WARRANTY FROM DATE OF STARTUP OR 2000 HRS OPERATION
  • PSI (POWER SOLUTIONS INTERNATIONAL) 5.7L ENGINE
  • NATURALLY ASPIRATED
  • 9.1:1 COMPRESSION RATIO
  • STANDARD AIR CLEANER
  • 1800 RPM ENGINE SPEED
  • 100 HP NATURAL GAS RATING
  • 12 MONTH WARRANTY FROM DATE OF STARTUP OR 2000 HRS OPERATION
  • FUEL SYSTEM
  • FUEL PRESSURE (kpa) IN H20: (1.74-2.74), 7″-11″
  • FUEL SUPPLY INLET LINE 1″
  • SEE SPEC SHEET FOR SUEL CONSUMPTION DETAILS
  • FUEL PRESSURE (kpa) IN H20: (1.74-2.74), 7″-11″
  • FUEL SUPPLY INLET LINE 1″
  • SEE SPEC SHEET FOR SUEL CONSUMPTION DETAILS
  • OTHER FEATURES / INCLUDED EQUIPMENT
  • LEVEL 2 SOUND ATTENUATED ENCLOSURE
  • INTERNAL EXHAUST SILENCER
  • MAIN LINE CIRCUIT BREAKER
  • FLEXIBLE OIL AND RADIATOR DRAIN HOSES
  • DEEP SEA 7420 MKII DIGITAL CONTROL PANEL
  • S-18B-2 – NFPA110 COMPLIANCE PACKAGE


  • S-10A FUEL LINES GROUP
  • 1″ FLEXIBLE DRY FUEL LINE
  • LPG OR NATURAL GAS LINE WITH 1″ NPT FITTINGS, 16″ LONG
  • S-13C 1000W ENGINE COOLANT HEATER
  • COOLANT HEATER WITH ON-OFF THERMOSTAT
  • S-B600 BATTERY PACKAGE
  • 600 CCA STARTING BATTERY 12VDC
  • BATTERY RACK AND CABLES
  • AUTO START/STOP
  • 12V “FLOAT” BATTERY CHARGER
  • AUTOMATIC VOLTAGE REGULATION
  • 12V ELECTRONIC IGNITION SYSTEM
  • 12V BATTERY CHARGING ALTERNATOR
  • ELECTRONIC ENGINE GOVERNOR
  • LEVEL 2 SOUND ATTENUATED ENCLOSURE
  • INTERNAL EXHAUST SILENCER
  • MAIN LINE CIRCUIT BREAKER
  • FLEXIBLE OIL AND RADIATOR DRAIN HOSES
  • DEEP SEA 7420 MKII DIGITAL CONTROL PANEL
  • S-18B-2 – NFPA110 COMPLIANCE PACKAGE



  • S-10A FUEL LINES GROUP
  • 1″ FLEXIBLE DRY FUEL LINE
  • LPG OR NATURAL GAS LINE WITH 1″ NPT FITTINGS, 16″ LONG
  • 1″ FLEXIBLE DRY FUEL LINE
  • LPG OR NATURAL GAS LINE WITH 1″ NPT FITTINGS, 16″ LONG
  • S-13C 1000W ENGINE COOLANT HEATER
  • COOLANT HEATER WITH ON-OFF THERMOSTAT
  • COOLANT HEATER WITH ON-OFF THERMOSTAT
  • S-B600 BATTERY PACKAGE
  • 600 CCA STARTING BATTERY 12VDC
  • 600 CCA STARTING BATTERY 12VDC
  • BATTERY RACK AND CABLES
  • AUTO START/STOP
  • 12V “FLOAT” BATTERY CHARGER
  • AUTOMATIC VOLTAGE REGULATION
  • 12V ELECTRONIC IGNITION SYSTEM
  • 12V BATTERY CHARGING ALTERNATOR
  • ELECTRONIC ENGINE GOVERNOR
